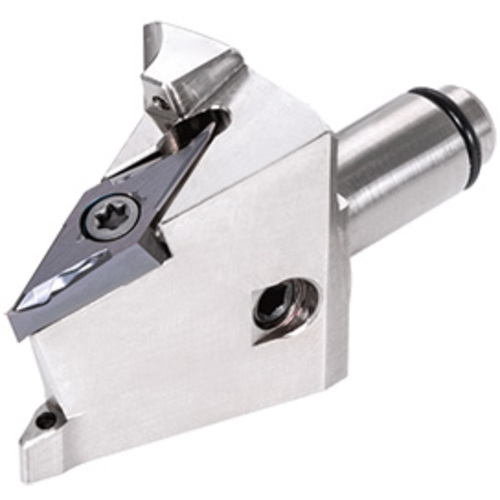

QC12-JSVVXR09-CHP

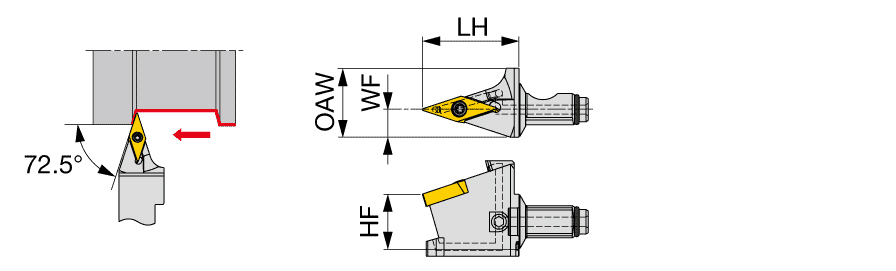

Turning Toolholder; 1.437″ OAL × 0.472″ Shank Height × 0.472″ Shank Width × 0.827″ LH ; Right Hand ; Steel
| Shank Height (H) | 0.472″ | Cutting Direction (HAND) | Right Hand |
| Shank Width (B) | 0.472″ | Master Insert Identification (MIID) | VXGU73.50.5L |
| Overall Length (OAL) | 1.437″ | Application | | For Miniature machining | |
| Functional Length (LF) | 0.843″ | Body Material | Steel |
| Head Length (LH) | 0.827″ | Measurement Type | Inch |
| Functional Width (WF) | 0.236″ |
Product Features
| Family Description | Modular head with 72.5 deg approach angle, for VXGU inserts, with high pressure coolant capability | Country of Origin | JAPAN |
| Remarks | Use right hand toolholders (R) with left hand inserts (L). Through coolant head. For using internal coolant, please select both a through coolant head and a through coolant shank. |
