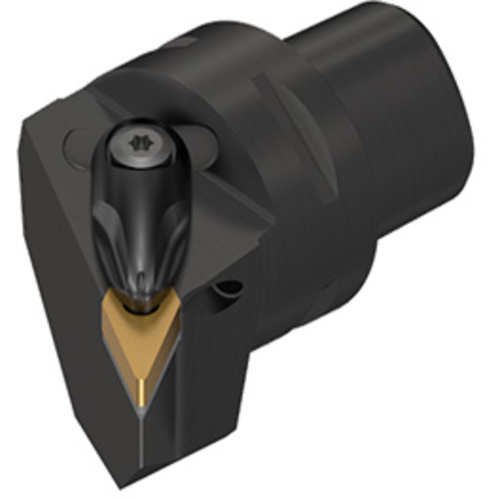

C4AVQNR27050-16N
Turning Toolholder; 2.913″ OAL × 1.575″ Shank Dia. ; Right Hand ; Steel

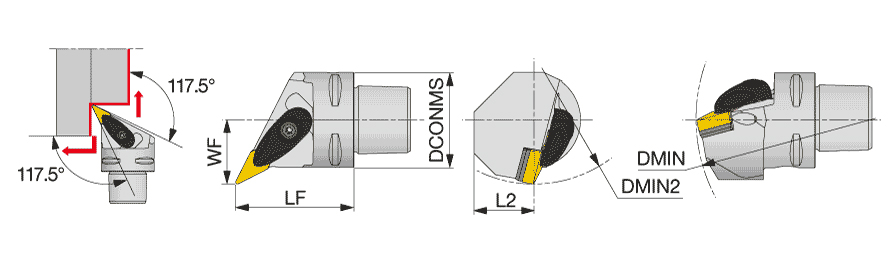

| Overall Length (OAL) | 2.913″ | Cutting Direction (HAND) | Right Hand |
| Functional Length (LF) | 1.968″ | Master Insert Identification (MIID) | VNMG332 |
| Functional Width (WF) | 1.063″ | Application | | Face contact interface | For 35deg Rhombic insert | |
| Connection Diameter Machine Side (DCONMS) | 1.575″ | Body Material | Steel |
| Minimum Bore Diameter (DMIN) | 5.709″ | Measurement Type | Inch |
Product Features
| Family Description | TungCap Double-clamp toolholder with 117.5 deg approach angle, for negative 35 deg and 25 deg rhombic inserts | Country of Origin | JAPAN |
| Remarks | Applicable for 7 MPa coolant |
Shipping Info
Package Weight
0.000
