C3SCLCL18040-09-CHP

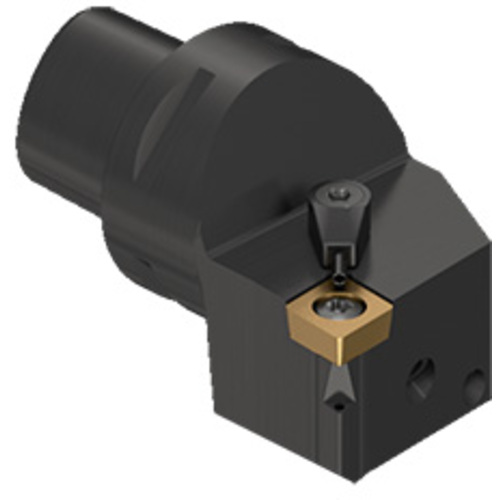

Turning Toolholder; 2.323″ OAL × 1.26″ Shank Dia. ; Left Hand ; Steel

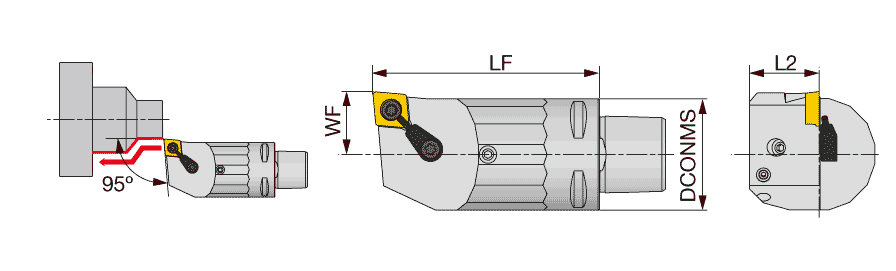

| Overall Length (OAL) | 2.323″ | Master Insert Identification (MIID) | CCGT32.52 |
| Functional Length (LF) | 1.575″ | Application | | Face contact interface | For 80deg Rhombic insert | |
| Functional Width (WF) | 0.709″ | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 1.26″ | Measurement Type | Inch |
| Cutting Direction (HAND) | Left Hand |
Product Features
| Family Description | TungCap Screw-on clamp toolholder with 95 deg approach angle, for positive 80 deg rhombic inserts, with high pressure coolant capability | Country of Origin | JAPAN |
| Remarks | Applicable for 14 MPa coolant Cannot be used for boring |
Shipping Info
Package Weight
0.000
