C3SDJCL22040-11-CHP

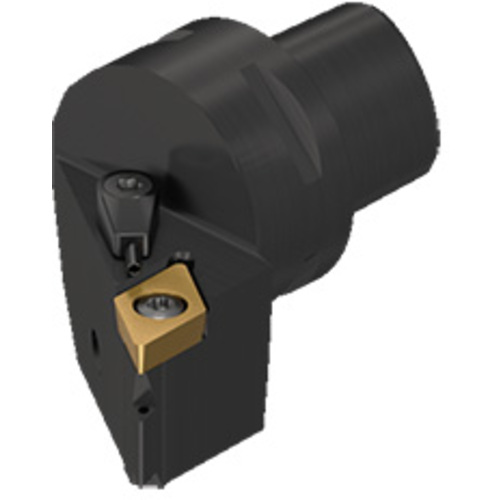

Turning Toolholder; 2.323″ OAL × 1.26″ Shank Dia. ; Left Hand ; Steel

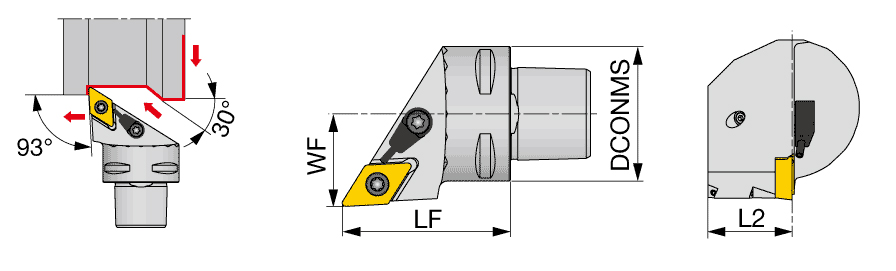

| Overall Length (OAL) | 2.323″ | Master Insert Identification (MIID) | DCGT32.52 |
| Functional Length (LF) | 1.575″ | Application | | Face contact interface | For 55deg Rhombic insert | |
| Functional Width (WF) | 0.866″ | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 1.26″ | Tool Type | Tapered Shank Turning Tools |
| Cutting Direction (HAND) | Left Hand | Measurement Type | Inch |
Product Features
| Family Description | TungCap Screw-on clamp toolholder with 93 deg approach angle, for positive 55 deg rhombic inserts, with high pressure coolant capability | Country of Origin | JAPAN |
| Remarks | Applicable for 14 MPa coolant Cannot be used for boring |
