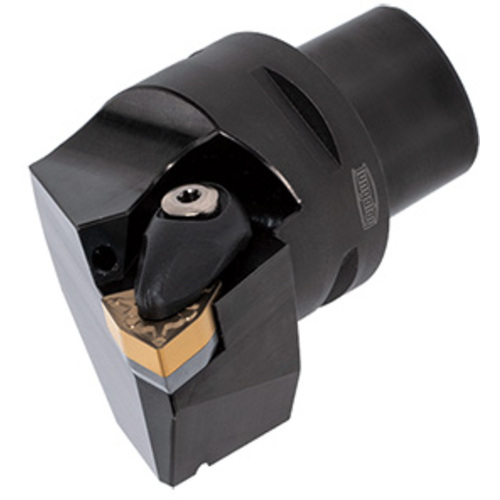

C3AWLNR22045-08N
Turning Toolholder; 2.52″ OAL × 1.26″ Shank Dia. ; Right Hand ; Steel

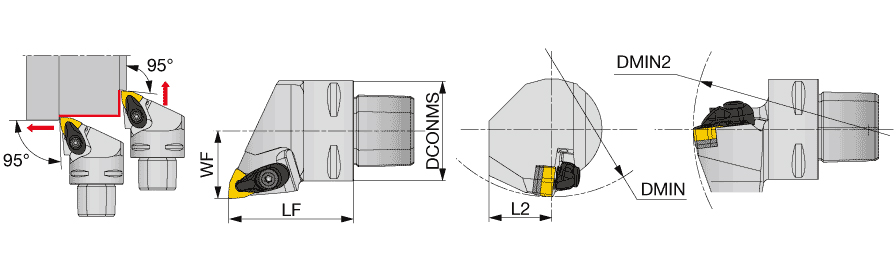

| Overall Length (OAL) | 2.52″ | Cutting Direction (HAND) | Right Hand |
| Functional Length (LF) | 1.772″ | Master Insert Identification (MIID) | WNMG432 |
| Functional Width (WF) | 0.866″ | Application | | Face contact interface | For 80deg Trigon insert | |
| Connection Diameter Machine Side (DCONMS) | 1.26″ | Body Material | Steel |
| Minimum Bore Diameter (DMIN) | 4.331″ | Measurement Type | Inch |
Product Features
| Family Description | TungCap Double-clamp toolholder with 95 deg approach angle, for negative trigon inserts | Country of Origin | JAPAN |
| Remarks | Applicable for 7 MPa coolant. The items without DMIN and DMIN2 cannot be used for boring. |
Shipping Info
Package Weight
0.000
