ACKNL164A

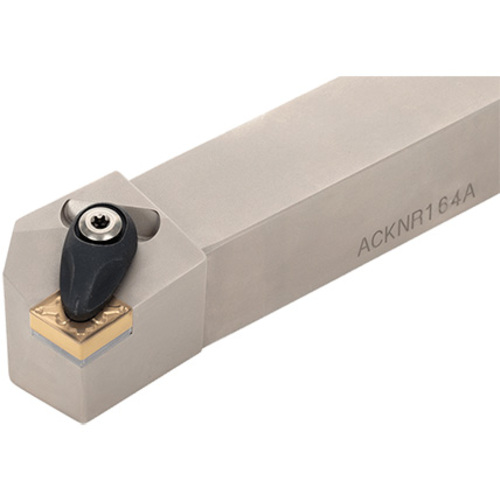

Turning Toolholder; 6″ OAL × 1″ Shank Height × 1″ Shank Width × 1-3/8″ LH ; Left Hand ; Steel

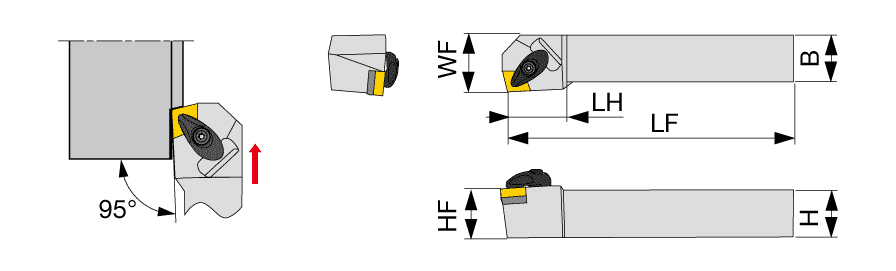

| Shank Height (H) | 1″ | Cutting Direction (HAND) | Left Hand |
| Shank Width (B) | 1″ | Master Insert Identification (MIID) | CNMG432 |
| Overall Length (OAL) | 6″ | Application | | For 80deg Rhombic insert | |
| Functional Length (LF) | 6″ | Body Material | Steel |
| Head Length (LH) | 1-3/8″ | Measurement Type | Inch |
| Functional Width (WF) | 1.312″ |
Product Features
| Family Description | Double-clamp toolholder with 95 deg approach angle for negative 80 deg rhombic insert | Country of Origin | Japan |
