TLFNL20-16

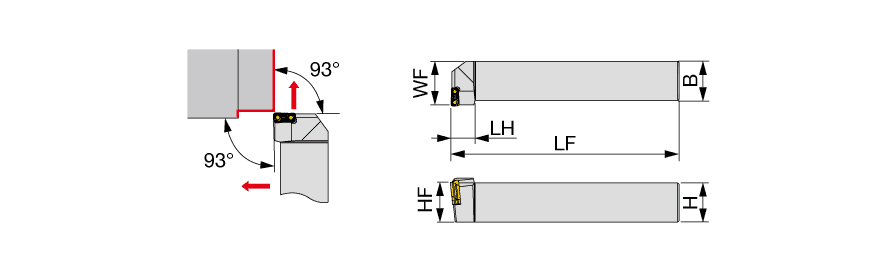

Turning Toolholder; 6.693″ OAL × 1-1/4″ Shank Height × 1-1/4″ Shank Width × 3/4″ LH ; Left Hand ; Steel
| Shank Height (H) | 1-1/4″ | Master Insert Identification (MIID) | LNMX160608R |
| Shank Width (B) | 1-1/4″ | Application | | For Heavy Turning | |
| Overall Length (OAL) | 6.693″ | Rake Angle Axial (GAMP) | -6 Degrees |
| Functional Length (LF) | 6.693″ | Rake Angle Radial (GAMF) | -6 Degrees |
| Head Length (LH) | 3/4″ | Body Material | Steel |
| Functional Width (WF) | 1.457″ | Tool Type | Square Shank Turning Tools |
| Cutting Direction (HAND) | Left Hand | Measurement Type | Inch |
Product Features
| Family Description | Screw-on clamp toolholder with tangential insert for roughing operation with 93deg approach angle | Country of Origin | Israel |
| Remarks | The right hand insert (R) is used for the left hand toolholders (TLFNL** type), and the left hand insert (L) is used for the right hand toolholders (TLFNR** type). |
