TLANL10-12
Turning Toolholder; 3.937″ OAL × 5/8″ Shank Height × 5/8″ Shank Width × 3/4″ LH ; Left Hand ; Steel

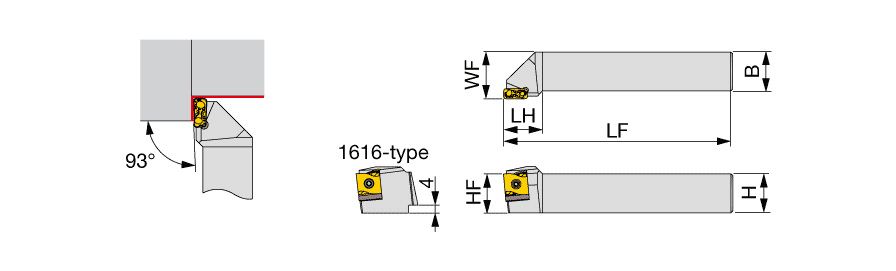

| Shank Height (H) | 5/8″ | Master Insert Identification (MIID) | LNMX120408L |
| Shank Width (B) | 5/8″ | Application | | For Heavy Turning | |
| Overall Length (OAL) | 3.937″ | Rake Angle Axial (GAMP) | -6 Degrees |
| Functional Length (LF) | 3.937″ | Rake Angle Radial (GAMF) | -6 Degrees |
| Head Length (LH) | 3/4″ | Body Material | Steel |
| Functional Width (WF) | 3/4″ | Tool Type | Square Shank Turning Tools |
| Cutting Direction (HAND) | Left Hand | Measurement Type | Inch |
Product Features
| Family Description | Screw-on clamp toolholder with tangential insert for roughing operation with 93deg approach angle | Country of Origin | Israel |
