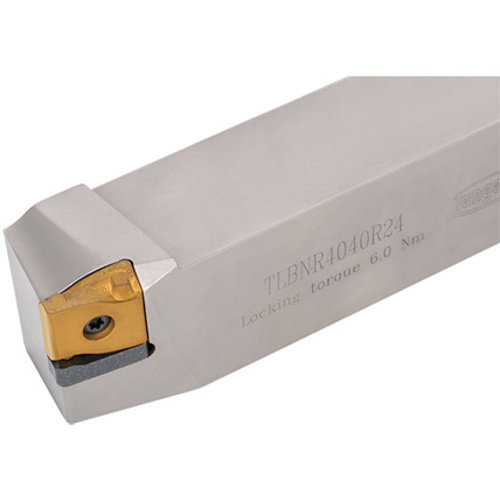

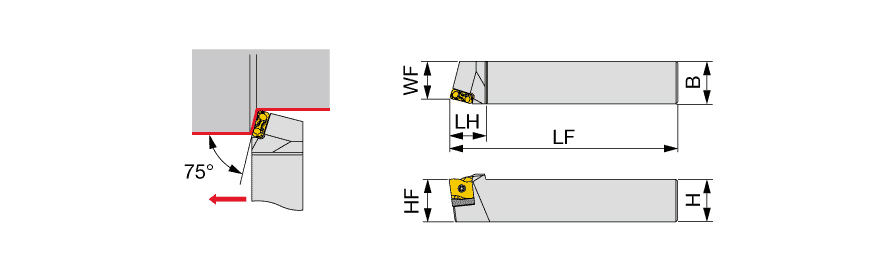

TLBNR24-24
Turning Toolholder; 7.874″ OAL × 1-1/2″ Shank Height × 1-1/2″ Shank Width × 1.378″ LH ; Right Hand ; Steel
| Shank Height (H) | 1-1/2″ | Master Insert Identification (MIID) | LNMX241016R |
| Shank Width (B) | 1-1/2″ | Application | | For Heavy Turning | |
| Overall Length (OAL) | 7.874″ | Rake Angle Axial (GAMP) | -4.3 Degrees |
| Functional Length (LF) | 7.874″ | Rake Angle Radial (GAMF) | -7.4 Degrees |
| Head Length (LH) | 1.378″ | Body Material | Steel |
| Functional Width (WF) | 1.378″ | Tool Type | Square Shank Turning Tools |
| Cutting Direction (HAND) | Right Hand | Measurement Type | Inch |
Product Features
| Family Description | Screw-on clamp toolholder with tangential insert for roughing operation with 75deg approach angle | Country of Origin | Israel |
Shipping Info
Package Weight
0
