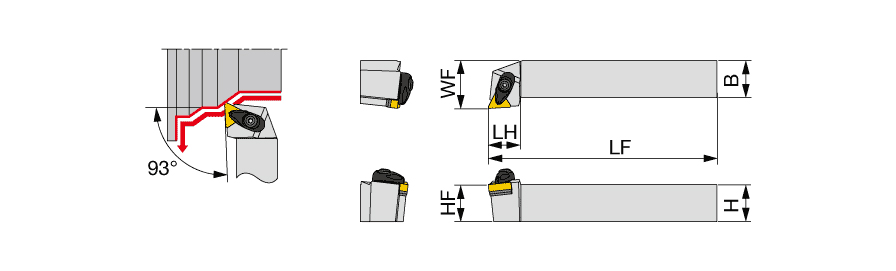

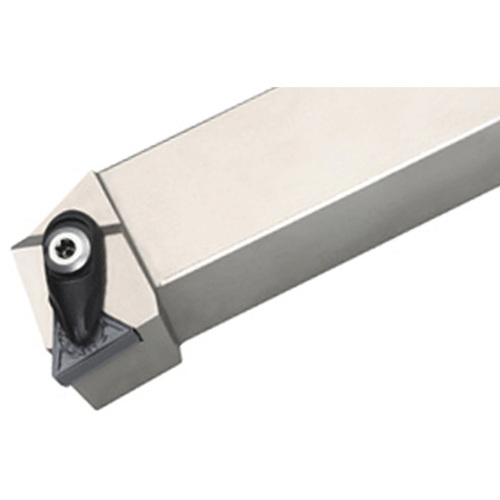

ATJNL123-A
Turning Toolholder; 4-1/2″ OAL × 3/4″ Shank Height × 3/4″ Shank Width × 7/8″ LH ; Left Hand ; Steel
| Shank Height (H) | 3/4″ | Cutting Direction (HAND) | Left Hand |
| Shank Width (B) | 3/4″ | Master Insert Identification (MIID) | TNMG332 |
| Overall Length (OAL) | 4-1/2″ | Application | | For Triangular insert | |
| Functional Length (LF) | 4-1/2″ | Body Material | Steel |
| Head Length (LH) | 7/8″ | Tool Type | Square Shank Turning Tools |
| Functional Width (WF) | 1″ | Measurement Type | Inch |
Product Features
| Family Description | Double-clamp toolholder with 93deg approach angle, for negative triangle inserts | Country of Origin | Japan |
| Remarks | Torque:Recommended torque (Nm) for clamping |
Shipping Info
Package Weight
0.811
