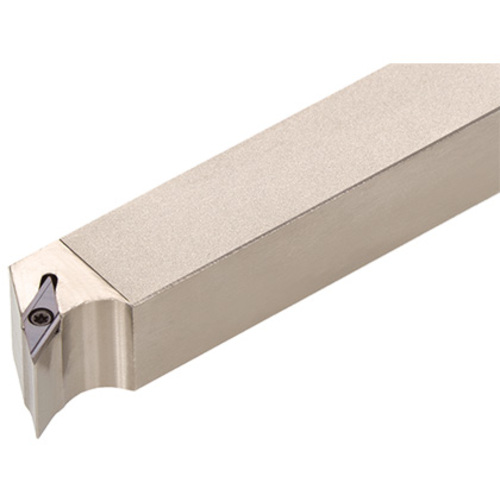

JSVP2PL1010K11
Turning Toolholder; 125 mm OAL × 10 mm Shank Height × 10 mm Shank Width × 20 mm LH ; Left Hand ; Steel

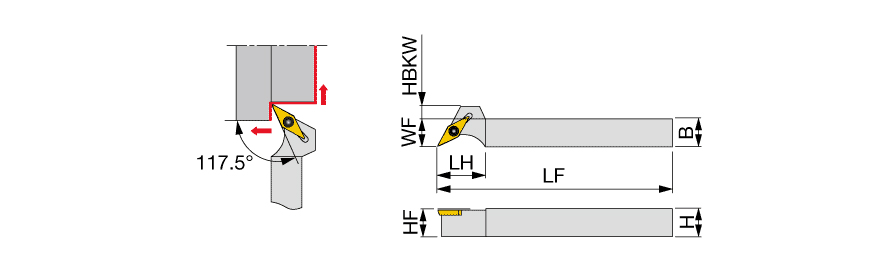

| Shank Height (H) | 10 mm | Cutting Direction (HAND) | Left Hand |
| Shank Width (B) | 10 mm | Master Insert Identification (MIID) | VPGT110302 |
| Overall Length (OAL) | 125 mm | Application | | For 35deg Rhombic insert | For Miniature machining | |
| Functional Length (LF) | 125 mm | Body Material | Steel |
| Head Length (LH) | 20 mm | Tool Type | Square Shank Turning Tools |
| Functional Width (WF) | 10 mm | Measurement Type | Metric |
Product Features
| Family Description | No-offset Screw-on toolholder with 117.5deg approach angle, for positive 35deg rhombic inserts | Country of Origin | JAPAN |
| Remarks | Torque: Recommended torque (Nm) for clamping. |
Shipping Info
Package Weight
0.258
