TLANL2020K16

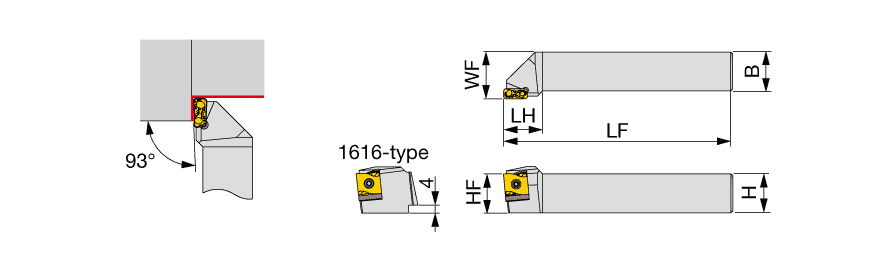

Turning Toolholder; 125 mm OAL × 20 mm Shank Height × 20 mm Shank Width × 25 mm LH ; Left Hand ; Steel
| Shank Height (H) | 20 mm | Master Insert Identification (MIID) | LNMX160608L |
| Shank Width (B) | 20 mm | Application | | For Heavy Turning | |
| Overall Length (OAL) | 125 mm | Rake Angle Axial (GAMP) | -6 Degrees |
| Functional Length (LF) | 125 mm | Rake Angle Radial (GAMF) | -6 Degrees |
| Head Length (LH) | 25 mm | Body Material | Steel |
| Functional Width (WF) | 25 mm | Tool Type | Square Shank Turning Tools |
| Cutting Direction (HAND) | Left Hand | Measurement Type | Metric |
Product Features
| Family Description | Screw-on clamp toolholder with tangential insert for roughing operation with 93deg approach angle | Country of Origin | ISRAEL |
Shipping Info
Package Weight
0.977
