TLFNR2525M16
Turning Toolholder; 150 mm OAL × 25 mm Shank Height × 25 mm Shank Width × 20 mm LH ; Right Hand ; Steel

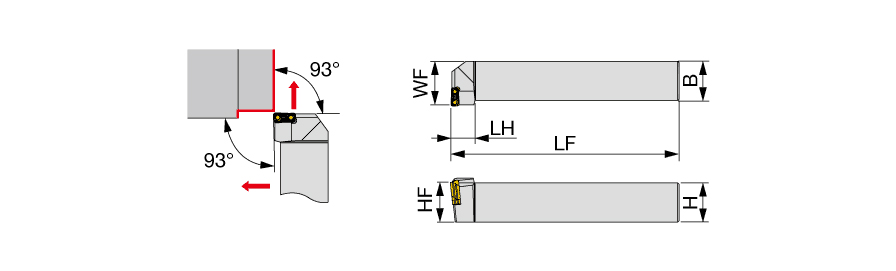

| Shank Height (H) | 25 mm | Master Insert Identification (MIID) | LNMX160608L |
| Shank Width (B) | 25 mm | Application | | For Heavy Turning | |
| Overall Length (OAL) | 150 mm | Rake Angle Axial (GAMP) | -6 Degrees |
| Functional Length (LF) | 150 mm | Rake Angle Radial (GAMF) | -6 Degrees |
| Head Length (LH) | 20 mm | Body Material | Steel |
| Functional Width (WF) | 30 mm | Tool Type | Square Shank Turning Tools |
| Cutting Direction (HAND) | Right Hand | Measurement Type | Metric |
Product Features
| Family Description | Screw-on clamp toolholder with tangential insert for roughing operation with 93deg approach angle | Country of Origin | Israel |
| Remarks | The right hand insert (R) is used for the left hand toolholders (TLFNL** type), and the left hand insert (L) is used for the right hand toolholders (TLFNR** type). |
Shipping Info
Package Weight
1.663
