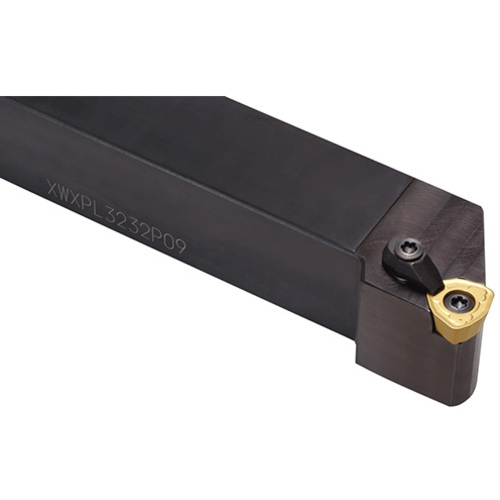

XWXPL16-09
Turning Toolholder; 6″ OAL × 1″ Shank Height × 1″ Shank Width × 1.378″ LH ; Left Hand ; Steel

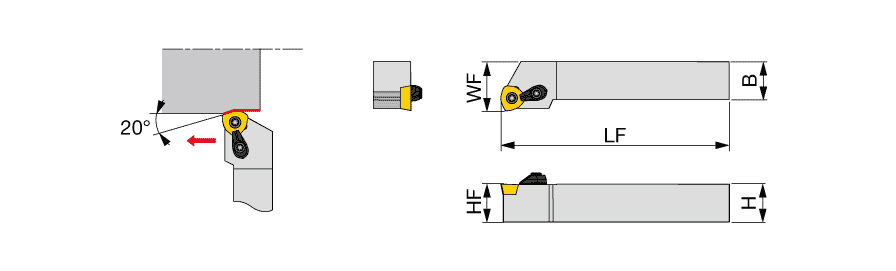

| Shank Height (H) | 1″ | Cutting Direction (HAND) | Left Hand |
| Shank Width (B) | 1″ | Master Insert Identification (MIID) | WPMT090725ZPL-ML |
| Overall Length (OAL) | 6″ | Application | | For 80deg Trigon insert | For Heavy Turning | |
| Functional Length (LF) | 6″ | Body Material | Steel |
| Head Length (LH) | 1.378″ | Tool Type | Square Shank Turning Tools |
| Functional Width (WF) | 1-1/4″ | Measurement Type | Inch |
Product Features
| Family Description | Double clamping toolholder with 20deg approach angle for roughing operation with positive trigon inserts | Country of Origin | JAPAN |
| Remarks | Note: Care should be taken not to confuse the hand of inserts to be used. |
Shipping Info
Package Weight
2.050
