AVVNN123-A

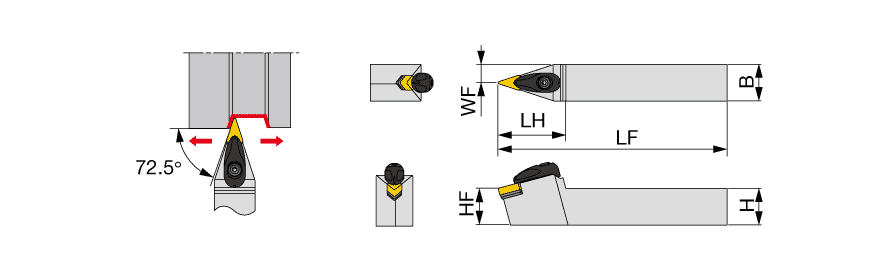

Turning Toolholder; 4-1/2″ OAL × 3/4″ Shank Height × 3/4″ Shank Width × 1.87″ LH ; Neutral ; Steel
| Shank Height (H) | 3/4″ | Cutting Direction (HAND) | Neutral |
| Shank Width (B) | 3/4″ | Master Insert Identification (MIID) | VNMG332 |
| Overall Length (OAL) | 4-1/2″ | Application | | For 35deg Rhombic insert | |
| Functional Length (LF) | 4-1/2″ | Body Material | Steel |
| Head Length (LH) | 1.87″ | Tool Type | Square Shank Turning Tools |
| Functional Width (WF) | 3/8″ | Measurement Type | Inch |
Product Features
| Family Description | Double-clamp toolholder with 72.5deg approach angle, for negative 35deg and 25deg rhombic inserts | Country of Origin | Japan |
| Remarks | Torque:Recommended torque (Nm) for clamping |
Shipping Info
Package Weight
0.752
