AVQNR163-A

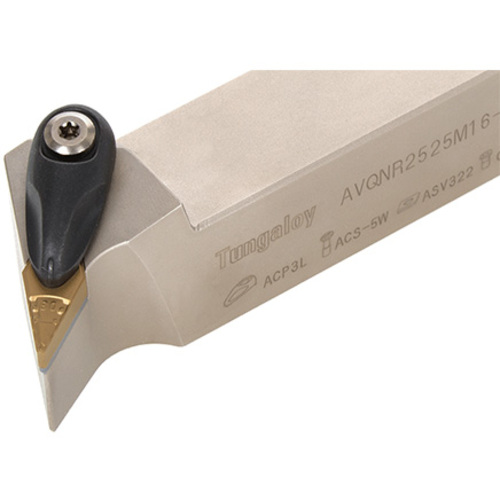

Turning Toolholder; 6″ OAL × 1″ Shank Height × 1″ Shank Width × 1.38″ LH ; Right Hand ; Steel

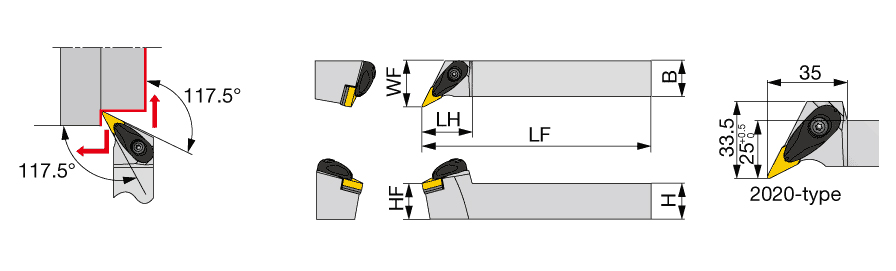

| Shank Height (H) | 1″ | Cutting Direction (HAND) | Right Hand |
| Shank Width (B) | 1″ | Master Insert Identification (MIID) | VNMG332 |
| Overall Length (OAL) | 6″ | Application | | For 35deg Rhombic insert | |
| Functional Length (LF) | 6″ | Body Material | Steel |
| Head Length (LH) | 1.38″ | Tool Type | Square Shank Turning Tools |
| Functional Width (WF) | 1-1/4″ | Measurement Type | Inch |
Product Features
| Family Description | Double-clamp toolholder with 117.5deg approach angle, for negative 35deg or 25deg rhombic inserts | Country of Origin | Japan |
| Remarks | Torque:Recommended torque (Nm) for clamping |
Shipping Info
Package Weight
1.757
