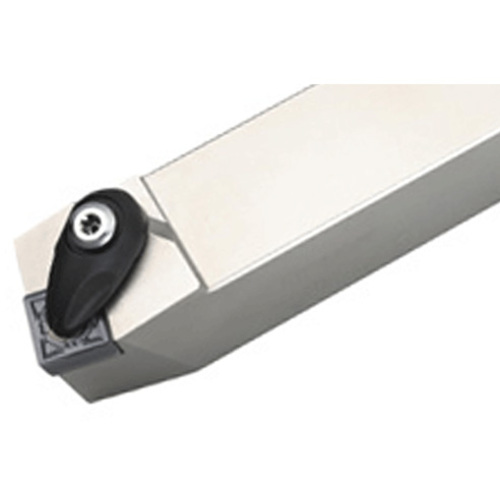

ASBNL164-A
Turning Toolholder; 6″ OAL × 1″ Shank Height × 1″ Shank Width × 1.18″ LH ; Left Hand ; Steel

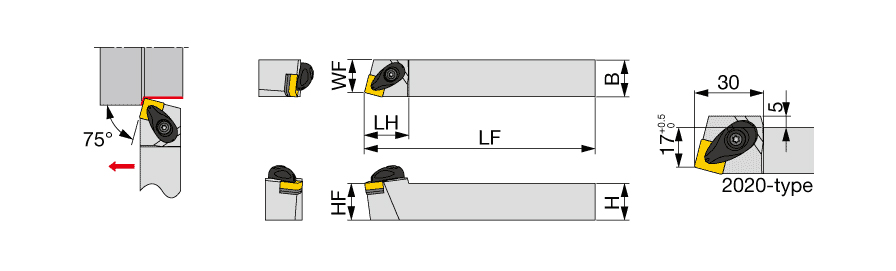

| Shank Height (H) | 1″ | Cutting Direction (HAND) | Left Hand |
| Shank Width (B) | 1″ | Master Insert Identification (MIID) | SNMG432 |
| Overall Length (OAL) | 6″ | Application | | For Square insert | |
| Functional Length (LF) | 6″ | Body Material | Steel |
| Head Length (LH) | 1.18″ | Tool Type | Square Shank Turning Tools |
| Functional Width (WF) | 7/8″ | Measurement Type | Inch |
Product Features
| Family Description | Double-clamp toolholder with 75deg approach angle, for negative square inserts | Country of Origin | JAPAN |
| Remarks | Torque:Recommended torque (Nm) for clamping |
