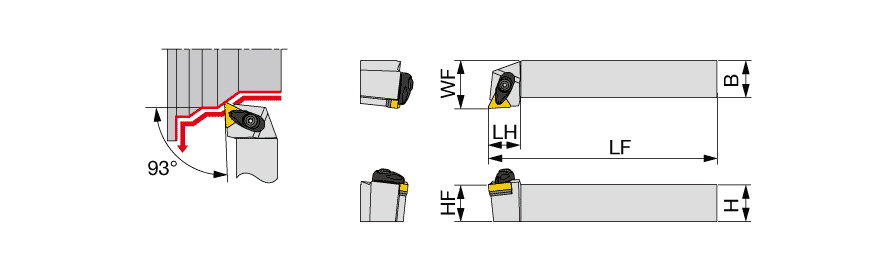

ATJNL2020K16-A
Turning Toolholder; 125 mm OAL × 20 mm Shank Height × 20 mm Shank Width × 22 mm LH ; Left Hand ; Steel
| Shank Height (H) | 20 mm | Cutting Direction (HAND) | Left Hand |
| Shank Width (B) | 20 mm | Master Insert Identification (MIID) | TNMG160408 |
| Overall Length (OAL) | 125 mm | Application | | For Triangular insert | |
| Functional Length (LF) | 125 mm | Body Material | Steel |
| Head Length (LH) | 22 mm | Tool Type | Square Shank Turning Tools |
| Functional Width (WF) | 25 mm | Measurement Type | Metric |
Product Features
| Family Description | Double-clamp toolholder with 93deg approach angle, for negative triangle inserts | Country of Origin | JAPAN |
| Remarks | Torque:Recommended torque (Nm) for clamping |
Shipping Info
Package Weight
0.957
