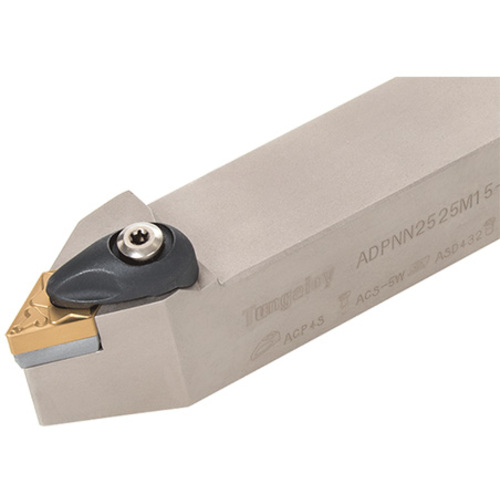

ADPNN2020K15-A
Turning Toolholder; 125 mm OAL × 20 mm Shank Height × 20 mm Shank Width × 36 mm LH ; Neutral ; Steel

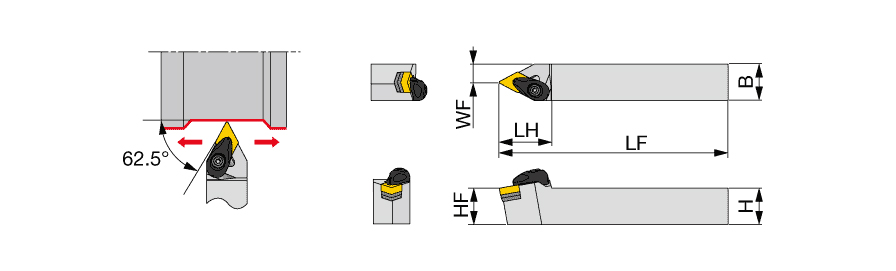

| Shank Height (H) | 20 mm | Cutting Direction (HAND) | Neutral |
| Shank Width (B) | 20 mm | Master Insert Identification (MIID) | DNMG150408 |
| Overall Length (OAL) | 125 mm | Application | | For 55deg Rhombic insert | |
| Functional Length (LF) | 125 mm | Body Material | Steel |
| Head Length (LH) | 36 mm | Tool Type | Square Shank Turning Tools |
| Functional Width (WF) | 7.5 mm | Measurement Type | Metric |
Product Features
| Family Description | Double-clamp toolholder with 62.5deg approach angle, for negative 55deg rhombic inserts | Country of Origin | JAPAN |
| Remarks | Torque:Recommended torque (Nm) for clamping |
Shipping Info
Package Weight
0.893
