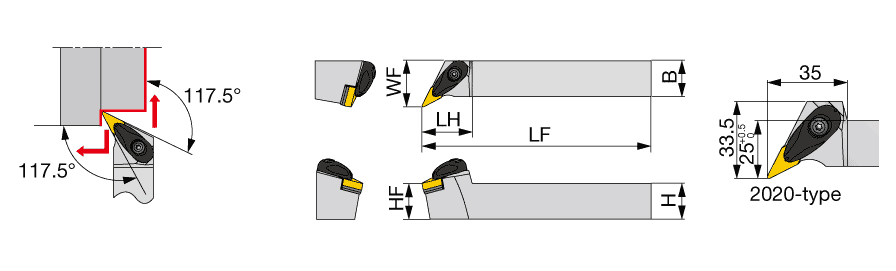

AVQNL2525M16-A
Turning Toolholder; 150 mm OAL × 25 mm Shank Height × 25 mm Shank Width × 35 mm LH ; Left Hand ; Steel
| Shank Height (H) | 25 mm | Cutting Direction (HAND) | Left Hand |
| Shank Width (B) | 25 mm | Master Insert Identification (MIID) | VNMG160408 |
| Overall Length (OAL) | 150 mm | Application | | For 35deg Rhombic insert | |
| Functional Length (LF) | 150 mm | Body Material | Steel |
| Head Length (LH) | 35 mm | Tool Type | Square Shank Turning Tools |
| Functional Width (WF) | 32 mm | Measurement Type | Metric |
Product Features
| Family Description | Double-clamp toolholder with 117.5deg approach angle, for negative 35deg or 25deg rhombic inserts | Country of Origin | Japan |
| Remarks | Torque:Recommended torque (Nm) for clamping |
Shipping Info
Package Weight
1.645
