XWXPR2525M09

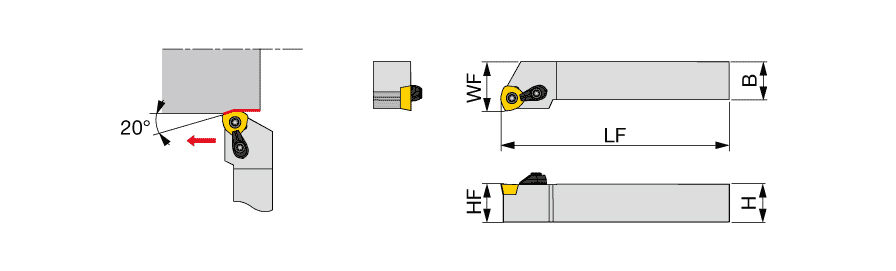

Turning Toolholder; 150 mm OAL × 25 mm Shank Height × 25 mm Shank Width × 35 mm LH ; Right Hand ; Steel
| Shank Height (H) | 25 mm | Cutting Direction (HAND) | Right Hand |
| Shank Width (B) | 25 mm | Master Insert Identification (MIID) | WPMT090725ZPR-ML |
| Overall Length (OAL) | 150 mm | Application | | For 80deg Trigon insert | For Heavy Turning | |
| Functional Length (LF) | 150 mm | Body Material | Steel |
| Head Length (LH) | 35 mm | Tool Type | Square Shank Turning Tools |
| Functional Width (WF) | 32 mm | Measurement Type | Metric |
Product Features
| Family Description | Double clamping toolholder with 20deg approach angle for roughing operation with positive trigon inserts | Country of Origin | JAPAN |
| Remarks | Note: Care should be taken not to confuse the hand of inserts to be used. |
Shipping Info
Package Weight
1.967
