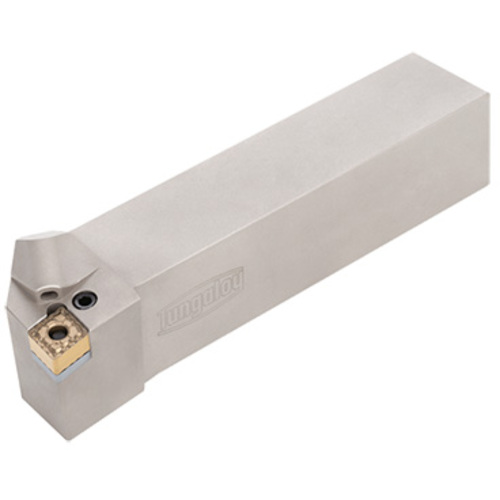

PCLNL2020H0904-CHP-N
Turning Toolholder; 100 mm OAL × 20 mm Shank Height × 20 mm Shank Width × 25 mm LH ; Left Hand ; Steel

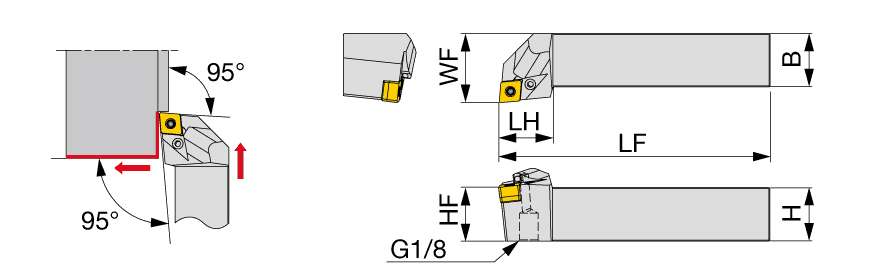

| Shank Height (H) | 20 mm | Cutting Direction (HAND) | Left Hand |
| Shank Width (B) | 20 mm | Master Insert Identification (MIID) | CNMG090408E |
| Overall Length (OAL) | 100 mm | Application | | For 80deg Rhombic insert | |
| Functional Length (LF) | 100 mm | Body Material | Steel |
| Head Length (LH) | 25 mm | Tool Type | Square Shank Turning Tools |
| Functional Width (WF) | 25 mm | Measurement Type | Metric |
Product Features
| Family Description | Lever-lock type toolholder with integrated coolant hole, for negative 80 deg rhombic insert CN**0904... | Country of Origin | JAPAN |
| Remarks | Applicable for 14 MPa pressure coolant |
Shipping Info
Package Weight
0.000
