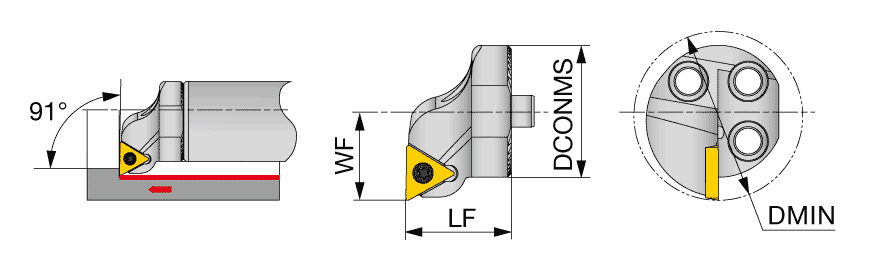

| Functional Length (LF) | 0.787″ | Master Insert Identification (MIID) | TPMT21.51 |
| Functional Width (WF) | 0.433″ | Application | | For Triangular insert | |
| Connection Diameter Machine Side (DCONMS) | 0.63″ | Body Material | Steel |
| Minimum Bore Diameter (DMIN) | 0.787″ | Measurement Type | Inch |
| Cutting Direction (HAND) | Right Hand |
Product Features

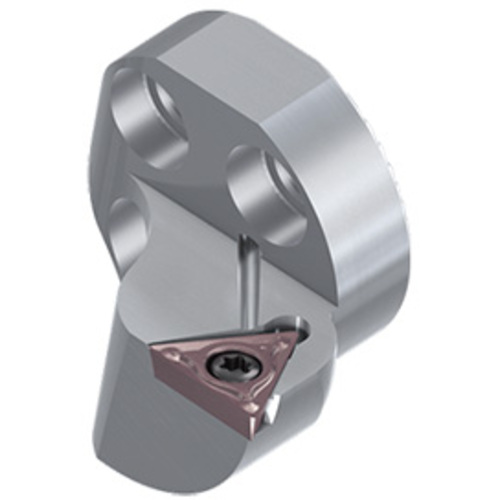

| Family Description | Screw-on clamp exchangeable boring head for Posi triangular insert with 11 deg clearance | Country of Origin | JAPAN |
| Remarks | When using a right or left hand insert, the right hand insert (R) is used for the left hand toolholders (STFPL... type), and the left hand insert (L) is used for the right hand toolholders (STFPR... type). DMIN for a 50 mm shank is equal to the requested head size plus 10 mm. For a 60 mm shank, the DMIN is the requested head size plus 20 mm. |
