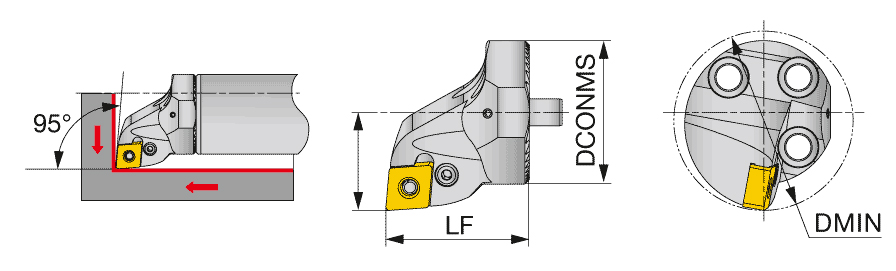

| Functional Length (LF) | 1.26″ | Master Insert Identification (MIID) | CNMG332E |
| Functional Width (WF) | 1.063″ | Application | | For 80deg Rhombic insert | |
| Connection Diameter Machine Side (DCONMS) | 1.575″ | Body Material | Steel |
| Minimum Bore Diameter (DMIN) | 1.968″ | Measurement Type | Inch |
| Cutting Direction (HAND) | Left Hand |
Product Features

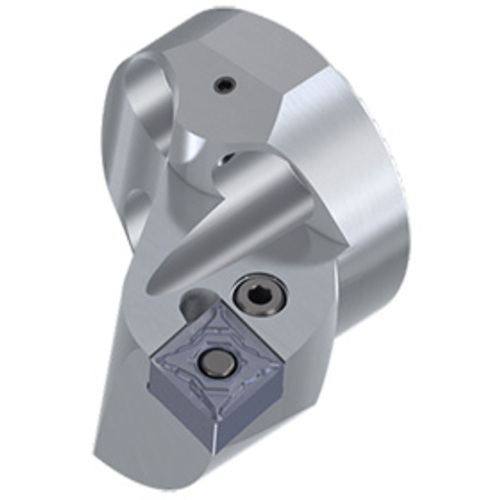

| Family Description | Lever-lock clamp exchangeable boring head for Negative 80 deg rhombic insert CN**33... | Country of Origin | JAPAN |
| Remarks | DMIN for a 50 mm shank is equal to the requested head size plus 10 mm. For a 60 mm shank, the DMIN is the requested head size plus 20 mm. |
Shipping Info
Package Weight
0.000
