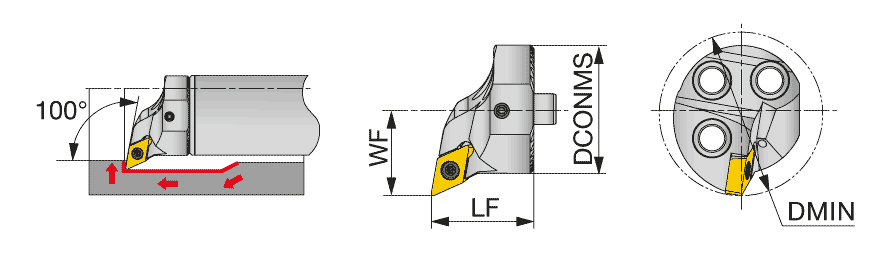

| Functional Length (LF) | 1.26″ | Master Insert Identification (MIID) | DXGU221L |
| Functional Width (WF) | 1.063″ | Application | | For 55deg Rhombic insert | |
| Connection Diameter Machine Side (DCONMS) | 1.575″ | Body Material | Steel |
| Minimum Bore Diameter (DMIN) | 1.968″ | Measurement Type | Inch |
| Cutting Direction (HAND) | Right Hand |
Product Features

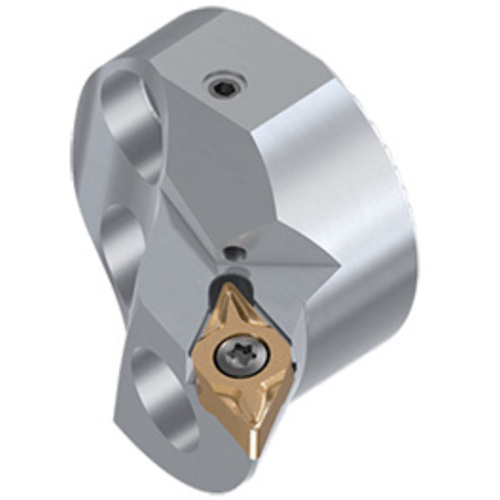

| Family Description | Screw-on clamp exchangeable boring head for DX*U insert | Country of Origin | JAPAN |
| Remarks | Use right hand toolholders (SDXXR... type) with left hand inserts (L); and left hand toolholders (SDXXL... type) with right hand inserts (R). DMIN for a 50 mm shank is equal to the requested head size plus 10 mm. For a 60 mm shank, the DMIN is the requested head size plus 20 mm. |
