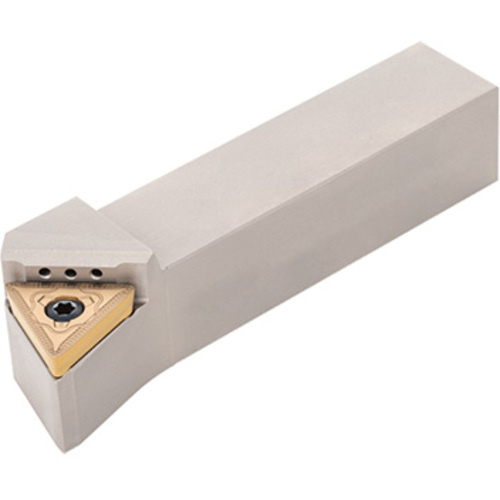

STXCL2525X29-CHP-MC
Turning Toolholder; 122 mm OAL × 25 mm Shank Height × 25 mm Shank Width × 32 mm LH ; Left Hand ; Steel

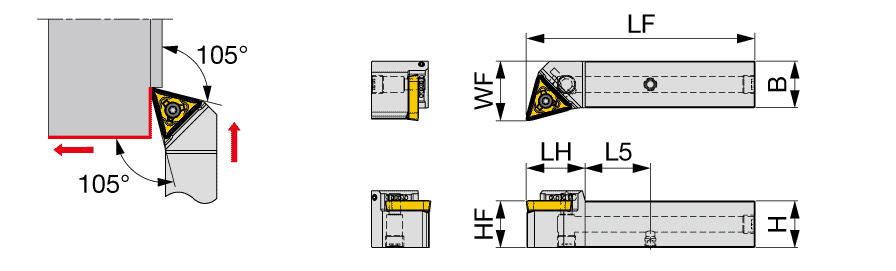

| Shank Height (H) | 25 mm | Cutting Direction (HAND) | Left Hand |
| Shank Width (B) | 25 mm | Master Insert Identification (MIID) | 3C-TCMT29X608-TM |
| Overall Length (OAL) | 122 mm | Application | | For Heavy Turning | |
| Functional Length (LF) | 122 mm | Body Material | Steel |
| Head Length (LH) | 32 mm | Tool Type | Square Shank Turning Tools |
| Functional Width (WF) | 32 mm | Measurement Type | Metric |
Product Features
| Family Description | Screw-on toolholder with 105 deg approach angle, for positive triangular inserts. Coolant capability with tube and direct connection. | Country of Origin | Japan |
| Remarks | *Products are made by license; PrimeTurning is a proprietary technology of AB Sandvik Coromant. |
