JS22K-SDUCL11

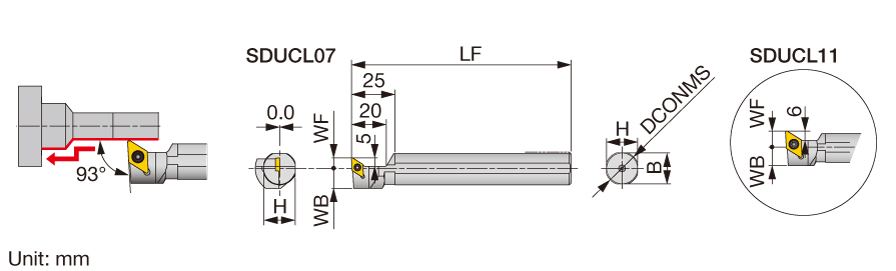

Turning Toolholder; 125 mm OAL × 21 mm Shank Height × 21 mm Shank Width × 22 mm Shank Dia. × 25 mm LH ; Left Hand ; Steel
| Shank Height (H) | 21 mm | Cutting Direction (HAND) | Left Hand |
| Shank Width (B) | 21 mm | Master Insert Identification (MIID) | DCGT11T308 |
| Overall Length (OAL) | 125 mm | Application | | For 55deg Rhombic insert | For Miniature machining | |
| Functional Length (LF) | 125 mm | Body Material | Steel |
| Head Length (LH) | 25 mm | Tool Type | Square Shank Turning Tools |
| Functional Width (WF) | 11 mm | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 22 mm |
Product Features
| Family Description | Screw-on round-shank toolholder with 93 deg approach angle, for positive 55 deg rhombic inserts | Country of Origin | JAPAN |
Shipping Info
Package Weight
0.794
