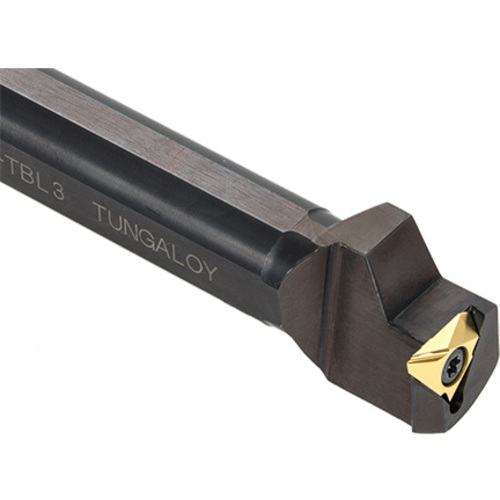

JS20K-TBL3

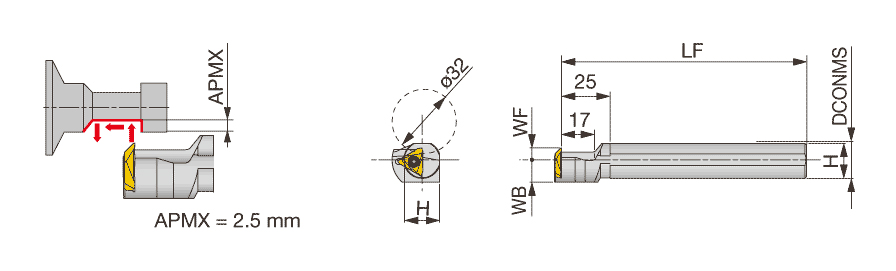

Turning Toolholder; 129.95 mm OAL × 19 mm Shank Height × 20 mm Shank Dia. × 25 mm LH ; Left Hand ; Steel
| Shank Height (H) | 19 mm | Cutting Direction (HAND) | Left Hand |
| Overall Length (OAL) | 129.95 mm | Master Insert Identification (MIID) | JTBR3000F |
| Functional Length (LF) | 125 mm | Application | | For Miniature machining | |
| Head Length (LH) | 25 mm | Body Material | Steel |
| Functional Width (WF) | 6 mm | Tool Type | Square Shank Turning Tools |
| Connection Diameter Machine Side (DCONMS) | 20 mm | Measurement Type | Metric |
Product Features
| Family Description | Screw-on toolholder for back turning with JTBR/L3** inserts | Country of Origin | JAPAN |
| Remarks | Left hand toolholders (TBL3) are used with right hand inserts (JTBR3). Torque:Recommended torque (Nm) for clamping. |
Shipping Info
Package Weight
0.703
