JS19K-SDUCL11

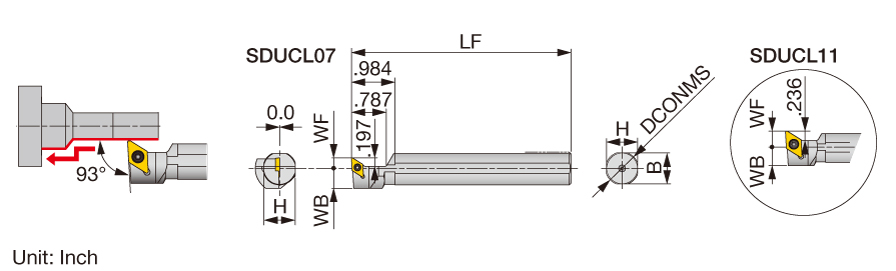

Turning Toolholder; 4.921″ OAL × 0.709″ Shank Height × 0.709″ Shank Width × 3/4″ Shank Dia. × 0.984″ LH ; Left Hand ; Steel
| Shank Height (H) | 0.709″ | Cutting Direction (HAND) | Left Hand |
| Shank Width (B) | 0.709″ | Master Insert Identification (MIID) | DCGT32.52 |
| Overall Length (OAL) | 4.921″ | Application | | For 55deg Rhombic insert | For Miniature machining | |
| Functional Length (LF) | 4.921″ | Body Material | Steel |
| Head Length (LH) | 0.984″ | Tool Type | Square Shank Turning Tools |
| Functional Width (WF) | 0.394″ | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 3/4″ |
Product Features
| Family Description | Screw-on round-shank toolholder with 93 deg approach angle, for positive 55 deg rhombic inserts | Country of Origin | JAPAN |
Shipping Info
Package Weight
0.613
