JSXBL2020K8

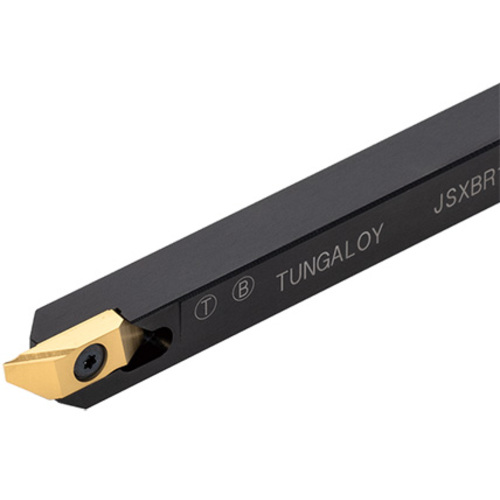

Turning Toolholder; 125 mm OAL × 20 mm Shank Height × 20 mm Shank Width × 29 mm LH ; Left Hand ; Steel

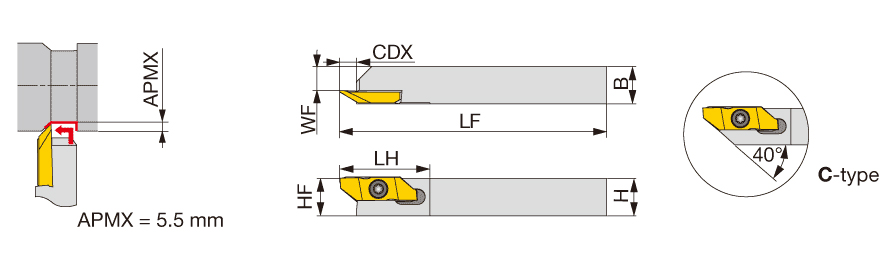

| Shank Height (H) | 20 mm | Cutting Direction (HAND) | Left Hand |
| Shank Width (B) | 20 mm | Master Insert Identification (MIID) | JXBL8000F |
| Overall Length (OAL) | 125 mm | Application | | Ext Threading | For Miniature machining | |
| Functional Length (LF) | 125 mm | Body Material | Steel |
| Head Length (LH) | 29 mm | Tool Type | Square Shank Turning Tools |
| Functional Width (WF) | 15.7 mm | Measurement Type | Metric |
Product Features
| Family Description | No-offset Screw-on toolholder for back turning with JXBR/L8**, and threading with JXT#R/L inserts | Country of Origin | Japan |
| Remarks | Can be wrenched from back side with double socket torx screw. JSXBR/L type toolholders are also used for JXT type threading inserts and JXB type back turning inserts. |
Shipping Info
Package Weight
0.829
