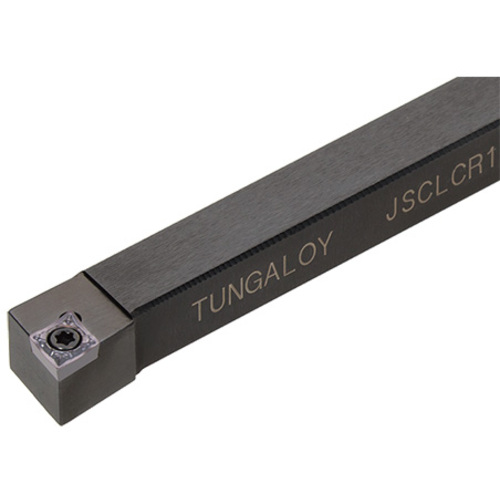

JSCLCR1616H09
Turning Toolholder; 100 mm OAL × 16 mm Shank Height × 16 mm Shank Width × 16 mm LH ; Right Hand ; Steel

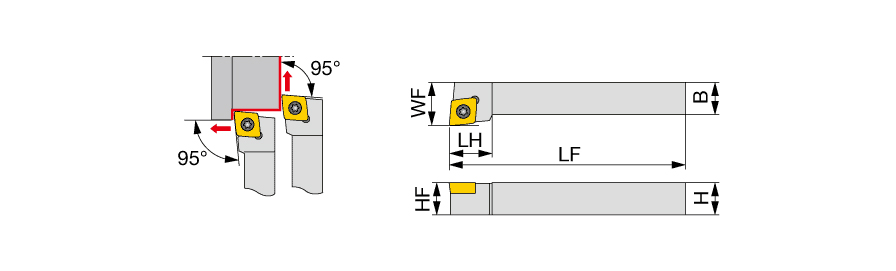

| Shank Height (H) | 16 mm | Cutting Direction (HAND) | Right Hand |
| Shank Width (B) | 16 mm | Master Insert Identification (MIID) | CCGT09T308 |
| Overall Length (OAL) | 100 mm | Application | | For 80deg Rhombic insert | For Miniature machining | |
| Functional Length (LF) | 100 mm | Body Material | Steel |
| Head Length (LH) | 16 mm | Tool Type | Square Shank Turning Tools |
| Functional Width (WF) | 20 mm | Measurement Type | Metric |
Product Features
| Family Description | Screw-on clamp toolholder with 95deg approach angle, for positive 80deg rhombic inserts | Country of Origin | Japan |
| Remarks | Torque:Recommended torque (Nm) for clamping. |
Shipping Info
Package Weight
0.47
