TBS425C16
Turning Toolholder; 125 mm OAL × 25 mm Shank Height × 25 mm Shank Width × 26 mm LH ; Right Hand ; Steel
| Shank Height (H) | 25 mm | Cutting Direction (HAND) | Right Hand |
| Shank Width (B) | 25 mm | Master Insert Identification (MIID) | CPMT160512 |
| Overall Length (OAL) | 125 mm | Application | | Boring Bars | |
| Functional Length (LF) | 125 mm | Body Material | Steel |
| Head Length (LH) | 26 mm | Tool Type | Adapter Turning Tools |
| Functional Width (WF) | 14.2 mm | Measurement Type | Metric |
| Minimum Bore Diameter (DMIN) | 82 mm |
Product Features
| Family Description | 45 deg approarch angle with square shank | Country of Origin | JAPAN |

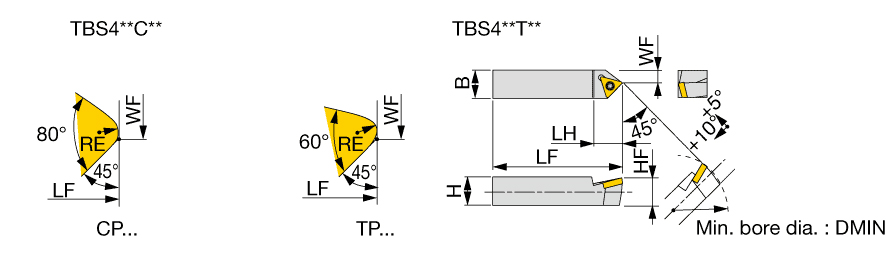

| Remarks | Figures shown above are of 13 mm or smaller square shanks used for normal direction of rotation. For the tools used for reverse direction of rotation, add H in the end of the designation. (Example: TBS308T08H) Use left hand inserts (L) for normal direction of rotation, and right hand inserts (R) for reverse direction of rotation. |
Shipping Info
Package Weight
1.290
