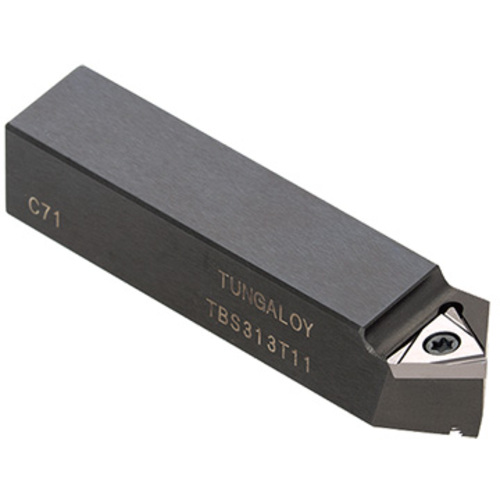

TBS313T11
Turning Toolholder; 60 mm OAL × 13 mm Shank Height × 13 mm Shank Width × 12 mm LH ; Right Hand ; Steel

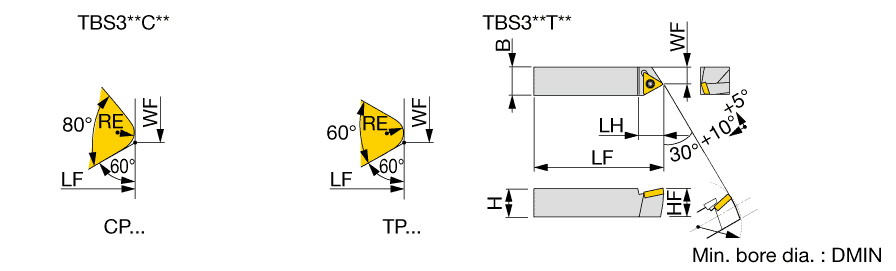

| Shank Height (H) | 13 mm | Cutting Direction (HAND) | Right Hand |
| Shank Width (B) | 13 mm | Master Insert Identification (MIID) | TPMT110204 |
| Overall Length (OAL) | 60 mm | Application | | Boring Bars | |
| Functional Length (LF) | 60 mm | Body Material | Steel |
| Head Length (LH) | 12 mm | Tool Type | Adapter Turning Tools |
| Functional Width (WF) | 8.3 mm | Measurement Type | Metric |
| Minimum Bore Diameter (DMIN) | 50 mm |
Product Features
| Family Description | 30 deg approarch angle with square shank | Country of Origin | JAPAN |
| Remarks | Figures shown above are of 13 mm or smaller square shanks used for normal direction of rotation. For the tools used for reverse direction of rotation, add H in the end of the designation. (Example: TBS308T08H) Use left hand inserts (L) for normal direction of rotation, and right hand inserts (R) for reverse direction of rotation. |
Shipping Info
Package Weight
0.196
