TBR406E04
Turning Toolholder; 25 mm OAL × 5 mm Shank Height × 6 mm Shank Dia. ; Right Hand ; Steel
| Shank Height (H) | 5 mm | Cutting Direction (HAND) | Right Hand |
| Overall Length (OAL) | 25 mm | Master Insert Identification (MIID) | EPGT040102 |
| Functional Length (LF) | 25 mm | Application | | Boring Bars | |
| Functional Width (WF) | 0 mm | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Tool Type | Adapter Turning Tools |
| Minimum Bore Diameter (DMIN) | 24 mm | Measurement Type | Metric |
Product Features
| Family Description | 45 deg approarch angle with round shank | Country of Origin | JAPAN |

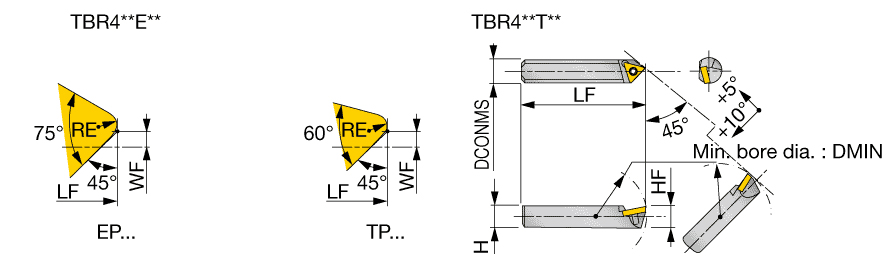

| Remarks | Figures shown above are of 8 mm or larger diameter shank used for normal direction of rotation. For the tools used for reverse direction of rotation, add H in the end of the designation. (Example: TBR105E04H) For the tools for normal direction of rotation, use a left hand insert, and for reverse direction of rotation, use a right hand insert. |
Shipping Info
Package Weight
0.044
