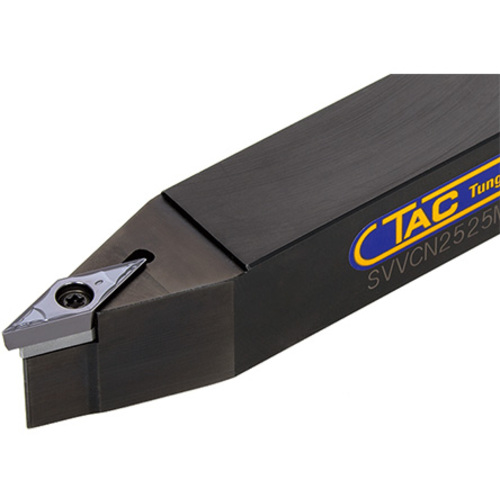

SVVCN2525M16

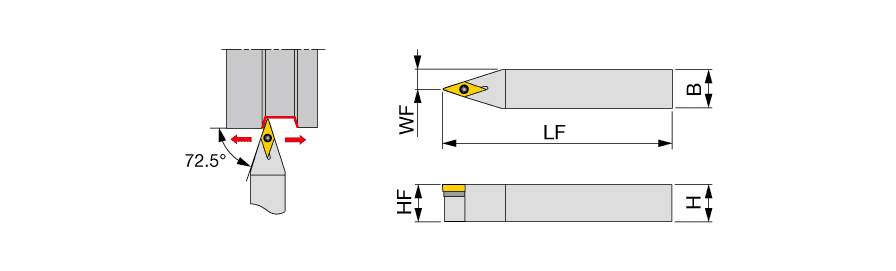

Turning Toolholder; 150 mm OAL × 25 mm Shank Height × 25 mm Shank Width × 39.9 mm LH ; Neutral ; Steel
| Shank Height (H) | 25 mm | Cutting Direction (HAND) | Neutral |
| Shank Width (B) | 25 mm | Master Insert Identification (MIID) | VCMT160408 |
| Overall Length (OAL) | 150 mm | Application | | For 35deg Rhombic insert | |
| Functional Length (LF) | 150 mm | Body Material | Steel |
| Head Length (LH) | 39.9 mm | Tool Type | Square Shank Turning Tools |
| Functional Width (WF) | 12.5 mm | Measurement Type | Metric |
Product Features
| Family Description | Screw-on clamp toolholder with 72.5deg approach angle, for positive 35deg rhombic inserts | Country of Origin | JAPAN |
Shipping Info
Package Weight
1.479
