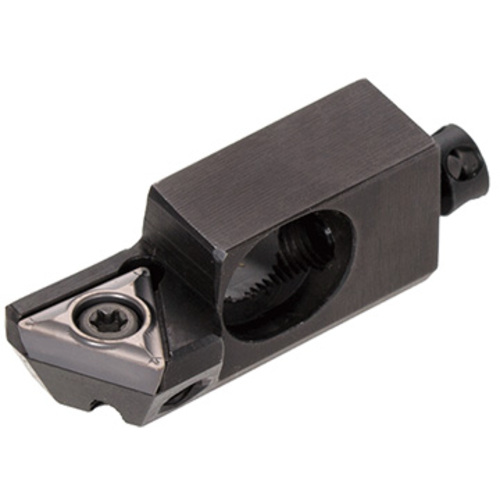

STWPR08CA-09
Turning Toolholder; 32.29 mm OAL × 11.5 mm Shank Height × 7.5 mm Shank Width × 6 mm LH ; Right Hand ; Steel

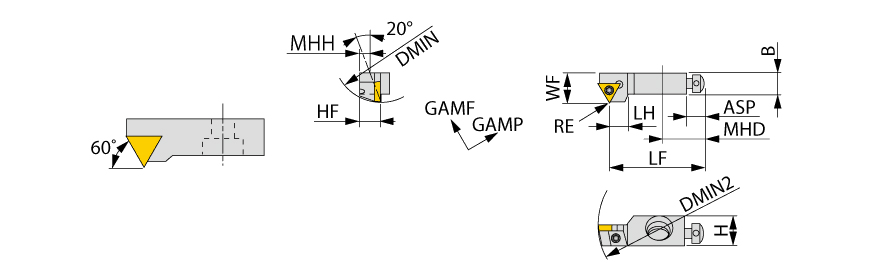

| Shank Height (H) | 11.5 mm | Master Insert Identification (MIID) | TPGT090204 |
| Shank Width (B) | 7.5 mm | Application | | Cartridges | |
| Overall Length (OAL) | 32.29 mm | Rake Angle Axial (GAMP) | 4 Degrees |
| Functional Length (LF) | 28 mm | Rake Angle Radial (GAMF) | 0 Degrees |
| Head Length (LH) | 6 mm | Body Material | Steel |
| Functional Width (WF) | 10 mm | Tool Type | Adapter Turning Tools |
| Minimum Bore Diameter (DMIN) | 25 mm | Measurement Type | Metric |
| Cutting Direction (HAND) | Right Hand |
Product Features
| Family Description | Screw on cartridge with 60deg approach angle for 11deg clearance triangle insert | Country of Origin | JAPAN |
| Remarks | Hand of the insert should be selected according to the application. |
Shipping Info
Package Weight
0.077
