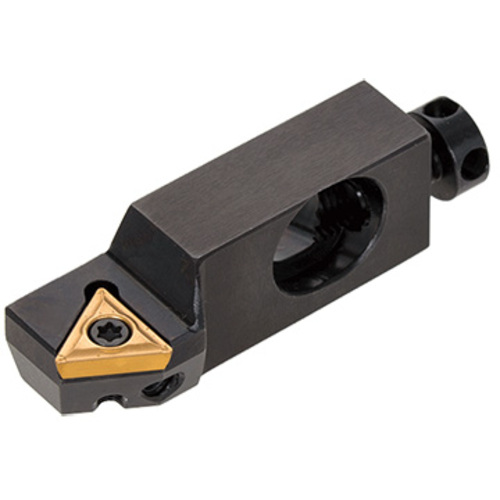

STTPR10CA-11
Turning Toolholder; 50 mm OAL × 14.5 mm Shank Height × 10 mm Shank Width × 15 mm LH ; Right Hand ; Steel

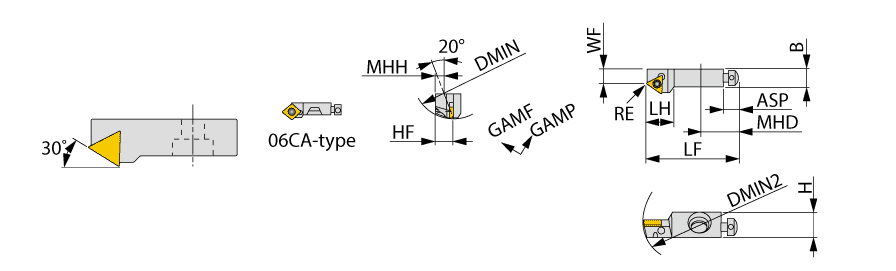

| Shank Height (H) | 14.5 mm | Master Insert Identification (MIID) | TPMT110204 |
| Shank Width (B) | 10 mm | Application | | Cartridges | |
| Overall Length (OAL) | 50 mm | Rake Angle Axial (GAMP) | 0 Degrees |
| Functional Length (LF) | 50 mm | Rake Angle Radial (GAMF) | 0 Degrees |
| Head Length (LH) | 15 mm | Body Material | Steel |
| Functional Width (WF) | 9 mm | Tool Type | Adapter Turning Tools |
| Minimum Bore Diameter (DMIN) | 40 mm | Measurement Type | Metric |
| Cutting Direction (HAND) | Right Hand |
Product Features
| Family Description | Screw on cartridge with 30deg approach angle for 11deg clearance triangle insert | Country of Origin | JAPAN |
Shipping Info
Package Weight
0.174
