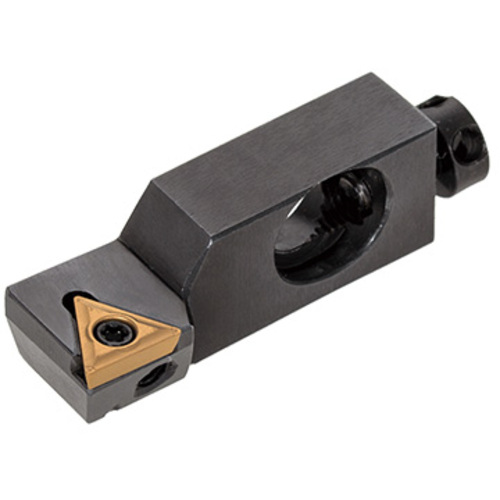

STGPL12CA-16
Turning Toolholder; 55 mm OAL × 19.5 mm Shank Height × 15 mm Shank Width × 19 mm LH ; Left Hand ; Steel

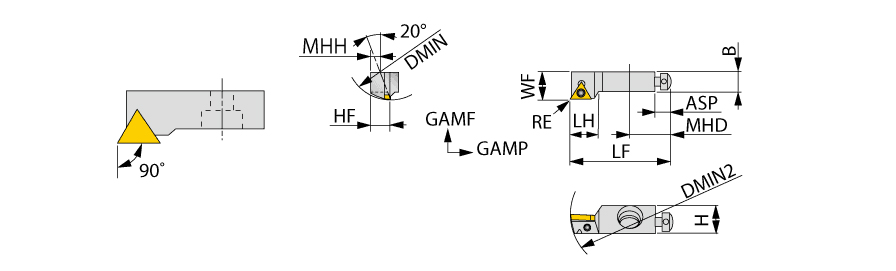

| Shank Height (H) | 19.5 mm | Master Insert Identification (MIID) | TPGT16T308 |
| Shank Width (B) | 15 mm | Application | | Cartridges | |
| Overall Length (OAL) | 55 mm | Rake Angle Axial (GAMP) | 5 Degrees |
| Functional Length (LF) | 55 mm | Rake Angle Radial (GAMF) | 2 Degrees |
| Head Length (LH) | 19 mm | Body Material | Steel |
| Functional Width (WF) | 20 mm | Tool Type | Adapter Turning Tools |
| Minimum Bore Diameter (DMIN) | 50 mm | Measurement Type | Metric |
| Cutting Direction (HAND) | Left Hand |
Product Features
| Family Description | Screw on cartridge with 90deg approach angle for 11deg clearance triangle insert | Country of Origin | JAPAN |
Shipping Info
Package Weight
0.276
