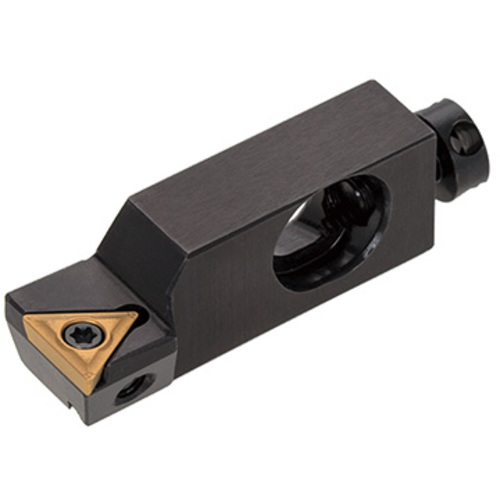

SCFPR06CA-05
Turning Toolholder; 25 mm OAL × 7.5 mm Shank Height × 5.5 mm Shank Width × 8.5 mm LH ; Right Hand ; Steel

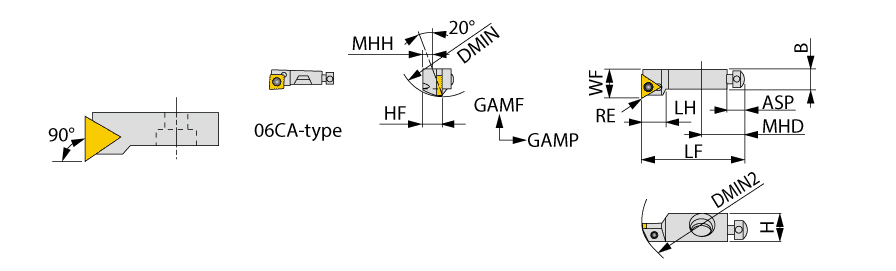

| Shank Height (H) | 7.5 mm | Master Insert Identification (MIID) | CPGT050204 |
| Shank Width (B) | 5.5 mm | Application | | Cartridges | |
| Overall Length (OAL) | 25 mm | Rake Angle Axial (GAMP) | 0 Degrees |
| Functional Length (LF) | 25 mm | Rake Angle Radial (GAMF) | 0 Degrees |
| Head Length (LH) | 8.5 mm | Body Material | Steel |
| Functional Width (WF) | 8 mm | Tool Type | Adapter Turning Tools |
| Minimum Bore Diameter (DMIN) | 20 mm | Measurement Type | Metric |
| Cutting Direction (HAND) | Right Hand |
Product Features
| Family Description | Screw on cartridge with 90deg approach angle for 11deg clearance triangle insert | Country of Origin | JAPAN |
| Remarks | The left hand insert is used for the right hand cartridge and right hand insert is used for left hand cartridge. |
Shipping Info
Package Weight
0.064
