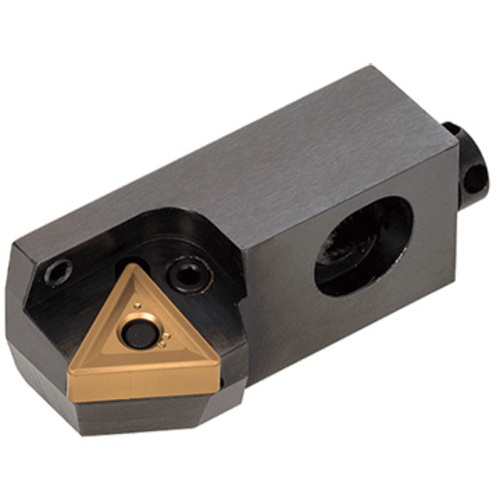

PTTNR10CA-11
Turning Toolholder; 50 mm OAL × 14.5 mm Shank Height × 10 mm Shank Width × 13 mm LH ; Right Hand ; Steel

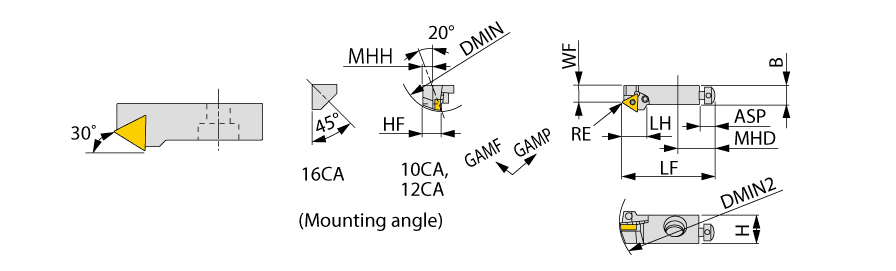

| Shank Height (H) | 14.5 mm | Master Insert Identification (MIID) | TNMG110304 |
| Shank Width (B) | 10 mm | Application | | Cartridges | |
| Overall Length (OAL) | 50 mm | Rake Angle Axial (GAMP) | -10 Degrees |
| Functional Length (LF) | 50 mm | Rake Angle Radial (GAMF) | 0 Degrees |
| Head Length (LH) | 13 mm | Body Material | Steel |
| Functional Width (WF) | 9 mm | Tool Type | Adapter Turning Tools |
| Minimum Bore Diameter (DMIN) | 40 mm | Measurement Type | Metric |
| Cutting Direction (HAND) | Right Hand |
Product Features
| Family Description | Lever lock cartridge with 30deg approach angle for negative triangule inserts | Country of Origin | JAPAN |
| Remarks | The left hand insert is used for the right hand cartridge and right hand insert is used for left hand cartridge. |
Shipping Info
Package Weight
0.165
