PCLNL1616
Turning Toolholder; 100 mm OAL × 16 mm Shank Height × 16 mm Shank Width × 26 mm LH ; Left Hand ; Steel

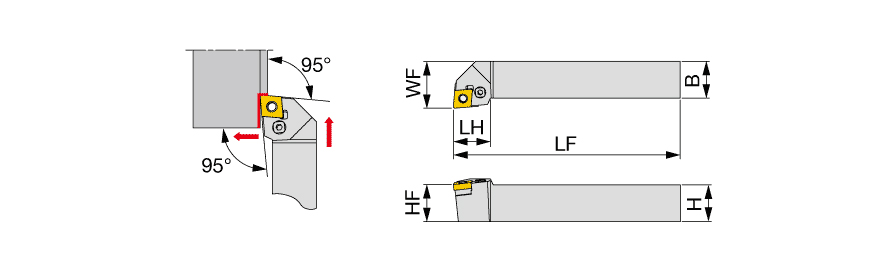

| Shank Height (H) | 16 mm | Cutting Direction (HAND) | Left Hand |
| Shank Width (B) | 16 mm | Master Insert Identification (MIID) | CNMG120408 |
| Overall Length (OAL) | 100 mm | Application | | For 80deg Rhombic insert | |
| Functional Length (LF) | 100 mm | Body Material | Steel |
| Head Length (LH) | 26 mm | Tool Type | Square Shank Turning Tools |
| Functional Width (WF) | 20 mm | Measurement Type | Metric |
Product Features
| Family Description | Lever lock type toolholder with 95 deg approach angle, for negative 80 deg rhombic inserts | Country of Origin | JAPAN |
Shipping Info
Package Weight
0.485
