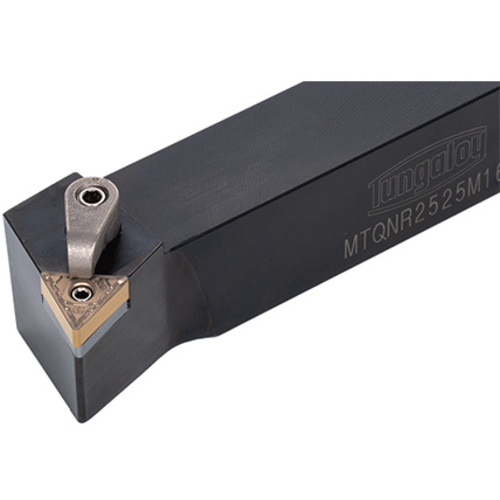

MTQNR2525M16
Turning Toolholder; 150 mm OAL × 25 mm Shank Height × 25 mm Shank Width × 26 mm LH ; Right Hand ; Steel

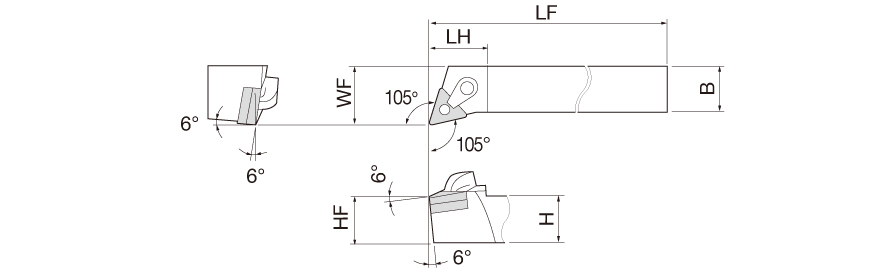

| Shank Height (H) | 25 mm | Cutting Direction (HAND) | Right Hand |
| Shank Width (B) | 25 mm | Master Insert Identification (MIID) | TNMG160408 |
| Overall Length (OAL) | 150 mm | Application | | For Triangular insert | |
| Functional Length (LF) | 150 mm | Body Material | Steel |
| Head Length (LH) | 26 mm | Tool Type | Square Shank Turning Tools |
| Functional Width (WF) | 32 mm | Measurement Type | Metric |
Product Features
| Family Description | Multi-clamp toolholder with 105deg approach angle, for negative triangle inserts | Country of Origin | JAPAN |
| Remarks | Option: MST 332 (Shim for TN**1603...) When using inserts without hole, the optional parts (shim screw and chipbreaker piece) are needed. |
Shipping Info
Package Weight
1.658
