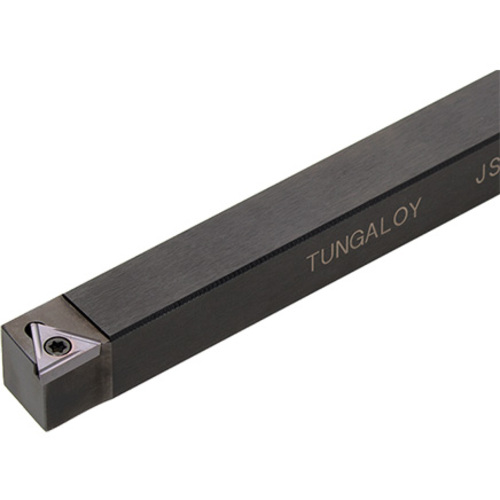

JSTACL1616H11
Turning Toolholder; 100 mm OAL × 16 mm Shank Height × 16 mm Shank Width × 12 mm LH ; Left Hand ; Steel

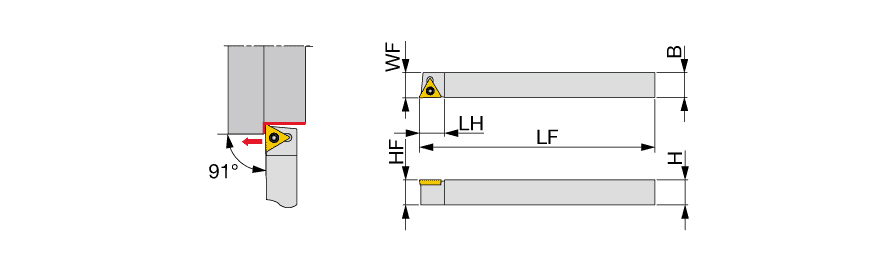

| Shank Height (H) | 16 mm | Cutting Direction (HAND) | Left Hand |
| Shank Width (B) | 16 mm | Master Insert Identification (MIID) | TCGT110204 |
| Overall Length (OAL) | 100 mm | Application | | For Miniature machining | For Triangular insert | |
| Functional Length (LF) | 100 mm | Body Material | Steel |
| Head Length (LH) | 12 mm | Tool Type | Square Shank Turning Tools |
| Functional Width (WF) | 16 mm | Measurement Type | Metric |
Product Features
| Family Description | No-offset Screw-on toolholder with 91deg approach angle, for positive triangle inserts | Country of Origin | Japan |
| Remarks | Torque:Recommended torque (Nm) for clamping. |
Shipping Info
Package Weight
0.461
