JSEGL1010K10

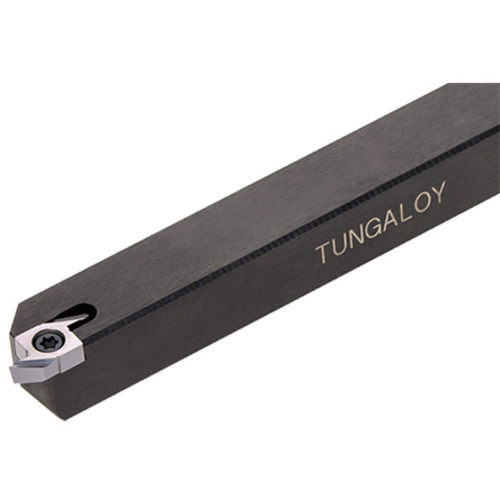

Turning Toolholder; 125 mm OAL × 10 mm Shank Height × 10 mm Shank Width × 3.3 mm LH ; Left Hand ; Steel

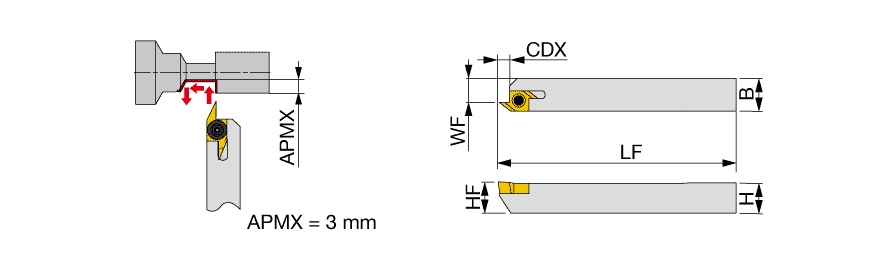

| Shank Height (H) | 10 mm | Cutting Direction (HAND) | Left Hand |
| Shank Width (B) | 10 mm | Master Insert Identification (MIID) | J10EL005BF |
| Overall Length (OAL) | 125 mm | Application | | For Miniature machining | |
| Functional Length (LF) | 125 mm | Body Material | Steel |
| Head Length (LH) | 3.3 mm | Tool Type | Square Shank Turning Tools |
| Functional Width (WF) | 7.5 mm | Measurement Type | Metric |
Product Features
| Family Description | Screw-on toolholder for back turning with J10ER/L** inserts | Country of Origin | JAPAN |
| Remarks | Torque:Recommended torque (Nm) for clamping. |
Shipping Info
Package Weight
0.251
