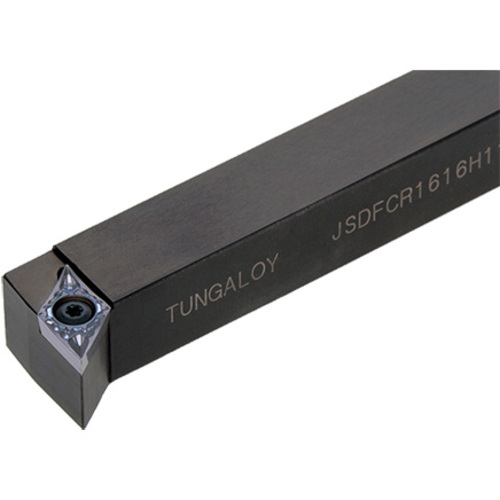

JSDFCR1212H07
Turning Toolholder; 100 mm OAL × 12 mm Shank Height × 12 mm Shank Width × 8 mm LH ; Right Hand ; Steel

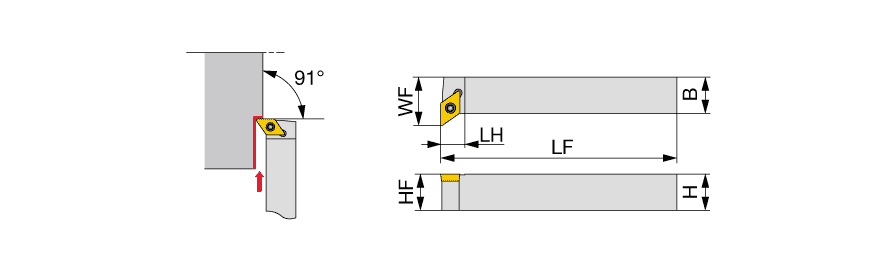

| Shank Height (H) | 12 mm | Cutting Direction (HAND) | Right Hand |
| Shank Width (B) | 12 mm | Master Insert Identification (MIID) | DCGT070204 |
| Overall Length (OAL) | 100 mm | Application | | For 55deg Rhombic insert | For Miniature machining | |
| Functional Length (LF) | 100 mm | Body Material | Steel |
| Head Length (LH) | 8 mm | Tool Type | Square Shank Turning Tools |
| Functional Width (WF) | 16 mm | Measurement Type | Metric |
Product Features
| Family Description | Screw-on clamp toolholder for facing with 91deg approach angle, positive 55deg rhombic inserts | Country of Origin | JAPAN |
| Remarks | Torque:Recommended torque (Nm) for clamping. |
Shipping Info
Package Weight
0.278
