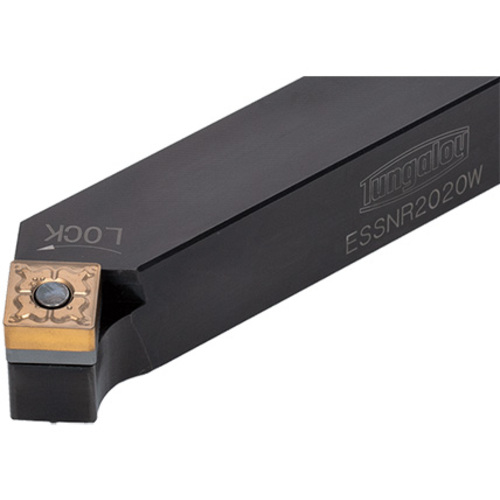

ESSNR1616H32

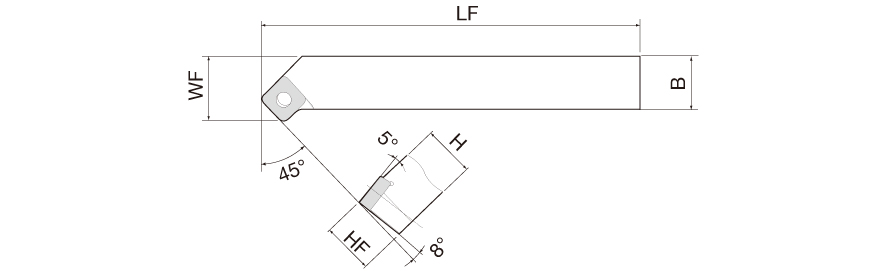

Turning Toolholder; 100 mm OAL × 16 mm Shank Height × 16 mm Shank Width × 15.5 mm LH ; Right Hand ; Steel
| Shank Height (H) | 16 mm | Cutting Direction (HAND) | Right Hand |
| Shank Width (B) | 16 mm | Master Insert Identification (MIID) | SNMG090308 |
| Overall Length (OAL) | 100 mm | Application | | For Square insert | |
| Functional Length (LF) | 100 mm | Body Material | Steel |
| Head Length (LH) | 15.5 mm | Measurement Type | Metric |
| Functional Width (WF) | 20 mm |
Product Features
| Family Description | Pin-lock toolholder with 45deg approach angle, for negative square inserts | Country of Origin | JAPAN |
Shipping Info
Package Weight
0.485
