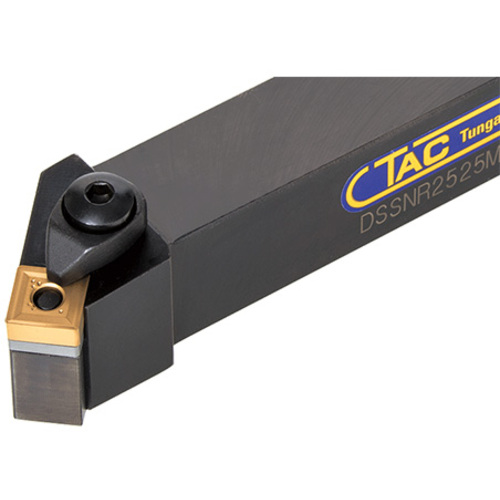

DSSNL2020K12
Turning Toolholder; 133.31 mm OAL × 20 mm Shank Height × 20 mm Shank Width × 34.3 mm LH ; Left Hand ; Steel

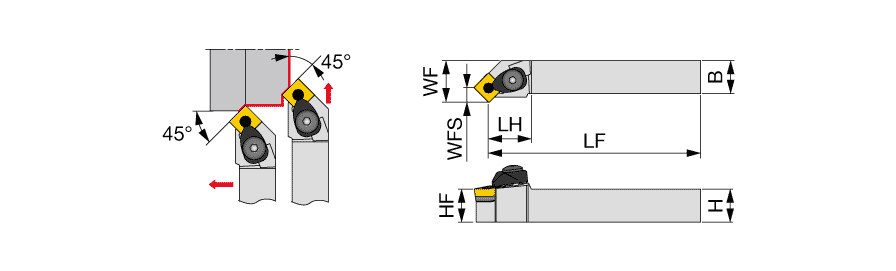

| Shank Height (H) | 20 mm | Cutting Direction (HAND) | Left Hand |
| Shank Width (B) | 20 mm | Master Insert Identification (MIID) | SNMG120408 |
| Overall Length (OAL) | 133.31 mm | Application | | For Square insert | |
| Functional Length (LF) | 125 mm | Body Material | Steel |
| Head Length (LH) | 34.3 mm | Tool Type | Square Shank Turning Tools |
| Functional Width (WF) | 25 mm | Measurement Type | Metric |
Product Features
| Family Description | One-Double toolholder with 45deg approach angle (S-style), for negative square inserts | Country of Origin | JAPAN |
| Remarks | Except for TRS, TU, TUS, 57, 65 type chipbreaker inserts |
Shipping Info
Package Weight
1.001
