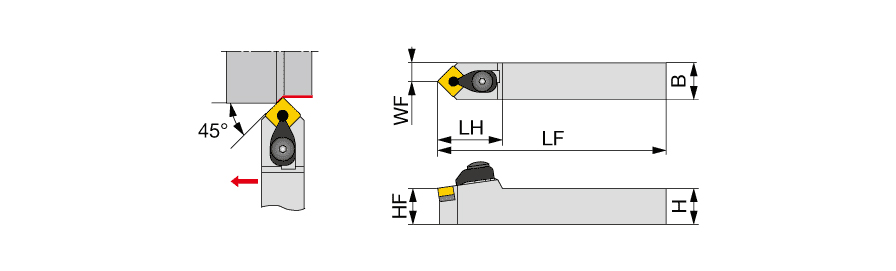

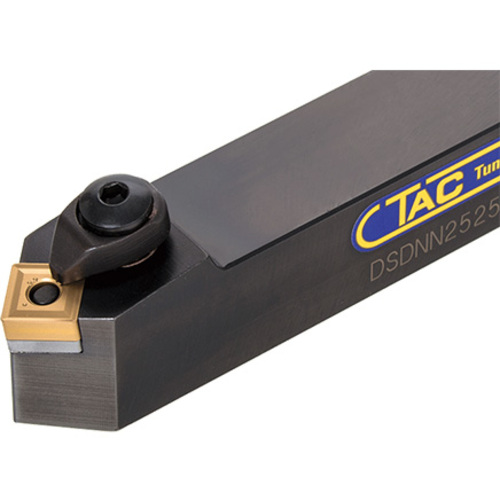

DSDNN2525M12
Turning Toolholder; 150 mm OAL × 25 mm Shank Height × 25 mm Shank Width × 36 mm LH ; Neutral ; Steel
| Shank Height (H) | 25 mm | Cutting Direction (HAND) | Neutral |
| Shank Width (B) | 25 mm | Master Insert Identification (MIID) | SNMG120408 |
| Overall Length (OAL) | 150 mm | Application | | For Square insert | |
| Functional Length (LF) | 150 mm | Body Material | Steel |
| Head Length (LH) | 36 mm | Tool Type | Square Shank Turning Tools |
| Functional Width (WF) | 12.5 mm | Measurement Type | Metric |
Product Features
| Family Description | One-Double toolholder with 45deg approach angle, for negative square inserts | Country of Origin | JAPAN |
| Remarks | Except for TRS, TU, TUS, 57, 65 type chipbreaker inserts |
Shipping Info
Package Weight
1.653
