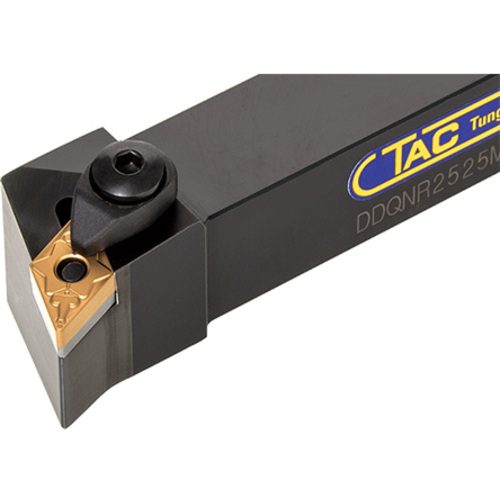

DDQNR3225P1506
Turning Toolholder; 170 mm OAL × 32 mm Shank Height × 25 mm Shank Width × 35 mm LH ; Right Hand ; Steel

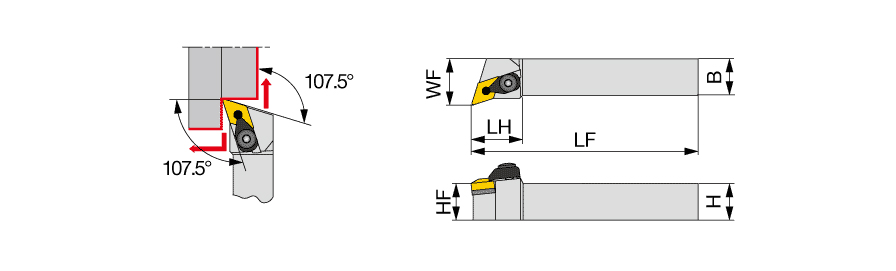

| Shank Height (H) | 32 mm | Cutting Direction (HAND) | Right Hand |
| Shank Width (B) | 25 mm | Master Insert Identification (MIID) | DNMG150608 |
| Overall Length (OAL) | 170 mm | Application | | For 55deg Rhombic insert | |
| Functional Length (LF) | 170 mm | Body Material | Steel |
| Head Length (LH) | 35 mm | Tool Type | Square Shank Turning Tools |
| Functional Width (WF) | 32 mm | Measurement Type | Metric |
Product Features
| Family Description | One-Double toolholder with 107.5deg approach angle, for negative 55deg rhombic inserts | Country of Origin | JAPAN |
| Remarks | Except for 57 type chipbreaker inserts |
Shipping Info
Package Weight
2.478
