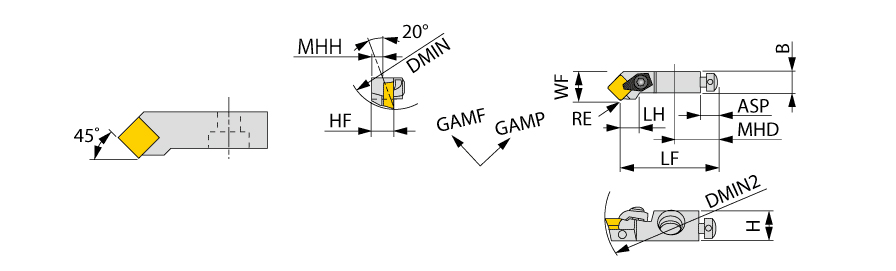

CSSER12CA-12
Turning Toolholder; 55.35 mm OAL × 19.5 mm Shank Height × 15 mm Shank Width × 12 mm LH ; Right Hand ; Steel
| Shank Height (H) | 19.5 mm | Master Insert Identification (MIID) | SEEN120308 |
| Shank Width (B) | 15 mm | Application | | Cartridges | |
| Overall Length (OAL) | 55.35 mm | Rake Angle Axial (GAMP) | 10 Degrees |
| Functional Length (LF) | 47 mm | Rake Angle Radial (GAMF) | 0 Degrees |
| Head Length (LH) | 12 mm | Body Material | Steel |
| Functional Width (WF) | 20 mm | Tool Type | Adapter Turning Tools |
| Minimum Bore Diameter (DMIN) | 50 mm | Measurement Type | Metric |
| Cutting Direction (HAND) | Right Hand |
Product Features

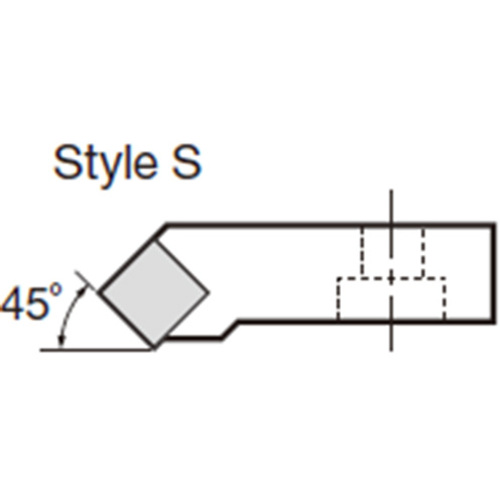

| Family Description | Clamp on cartridge with 45deg approach angle for 20deg clearance square insert | Country of Origin | Japan |
| Remarks | Hand of the insert should be selected according to the application. |
Shipping Info
Package Weight
0.247
